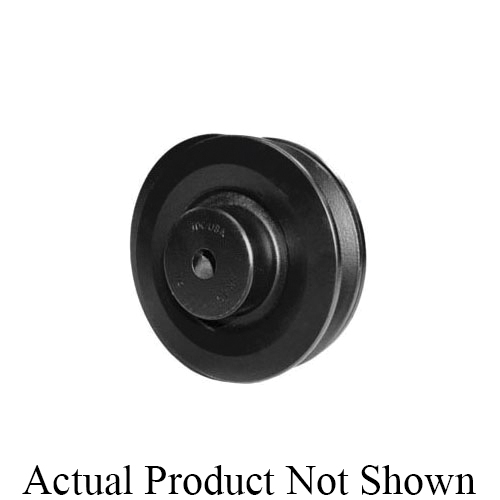

IDC Select® IDC BK034-1/2 Light Duty Type 2 Single Groove Sheave With Setscrew, Bored to Size Bore, 1/2 in Dia Bore, 3.55 in OD, 3.2 in Dia Pitch, 7/8 in W Face
IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.
-
BrandIDC Select®
-
UPC887412013343
-
Manufacturer Part NumberIDC BK034-1/2
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter3.2 in
-
FinishBaked Enamel
-
MaterialClass 25 Cast Iron
-

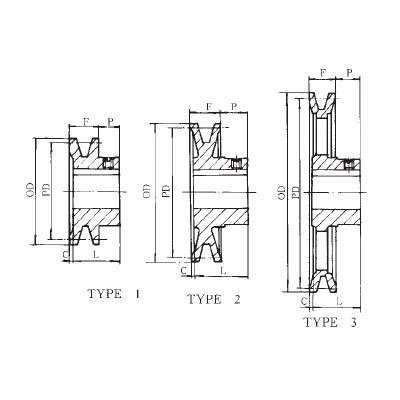

TypeLight Duty Type 2
-
Hub Projection13/32 in
-
Outside Diameter3.55 in
-
Bore Diameter1/2 in
-
Bore TypeBored to Size
-
Suitable For Use With4L/A and 5L/B Cross Section V-Belts
- Precision machined from gray cast iron
- Statically balanced
- Cast iron sheaves should not exceed 6500 fpm rim speed
- Special or dynamic balancing should be considered when speeds exceed 5000 fpm
- Without keyway
- 2.8 in Dia pitch 4L/3.2 in Dia pitch 5L(B)
-
UNSPSC31171804
-
Package Description1/PK
-
Standards/ApprovalsASTM Specified|SAE Standard
-
Technical Bulletin
-
Catalog
