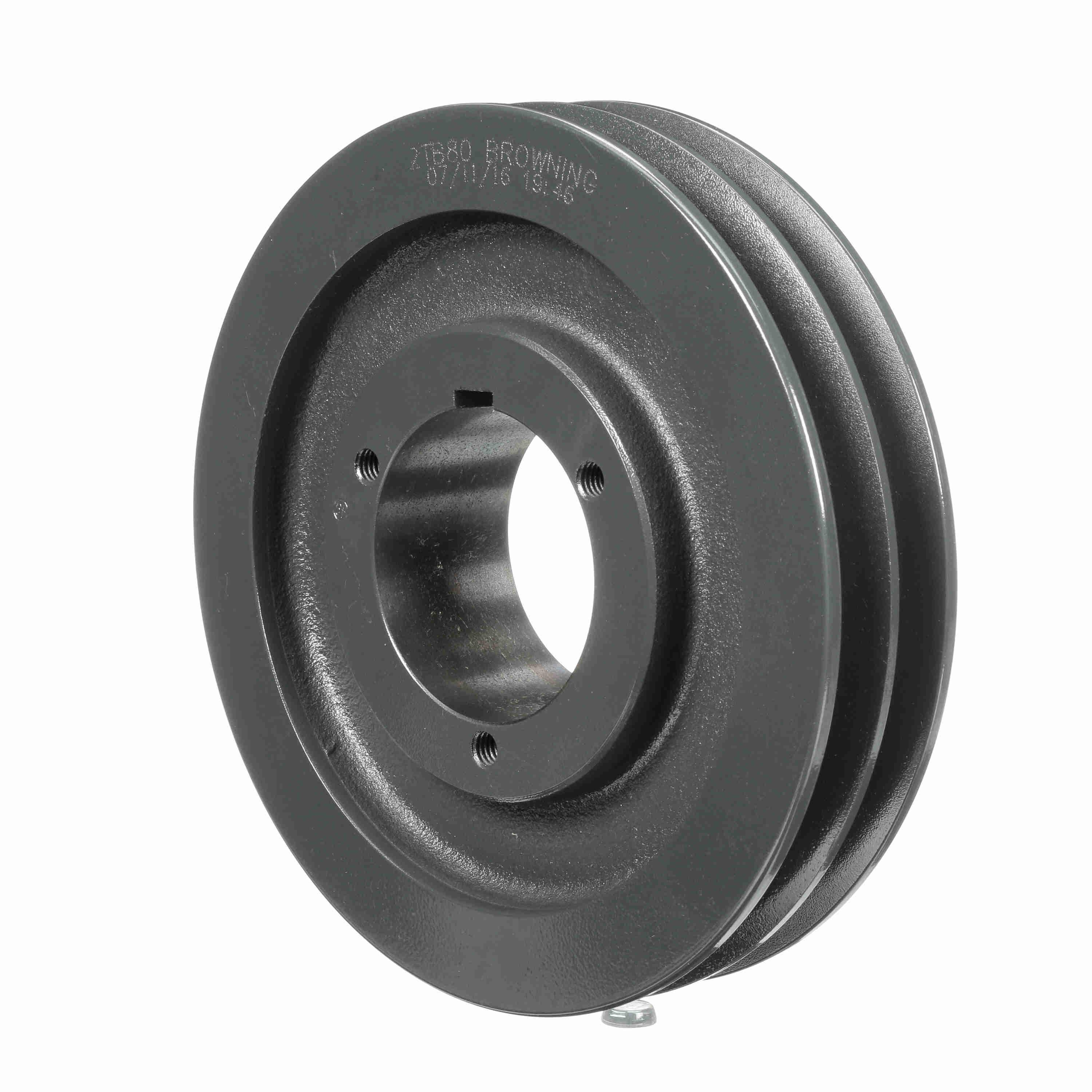

Browning® 1002393 TB Series Type 13 Web Multiple Sheave With Split Taper Bushing, 3/4 to 2-11/16 in Split Taper Bore, 8.28 in OD, 2 Grooves, 7.8 in (A)/8.3 in (B) Dia Pitch, 1-3/4 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289310395
-
Manufacturer Part Number1002393
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeQ1
-
Pitch Diameter7.8 in (A)/8.3 in (B)
-
MaterialCast Iron
-
TypeType 13 Web
-
SeriesTB Series
-
Hub Projection27/32 in
-
Number of Grooves2
-
Outside Diameter8.28 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-53/64 in
-
Suitable For Use WithGripbelt® A and B Cross Section Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100784710 |
| Motion Industries | 00730777 |
-
Alternative Part Number2TB80
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
