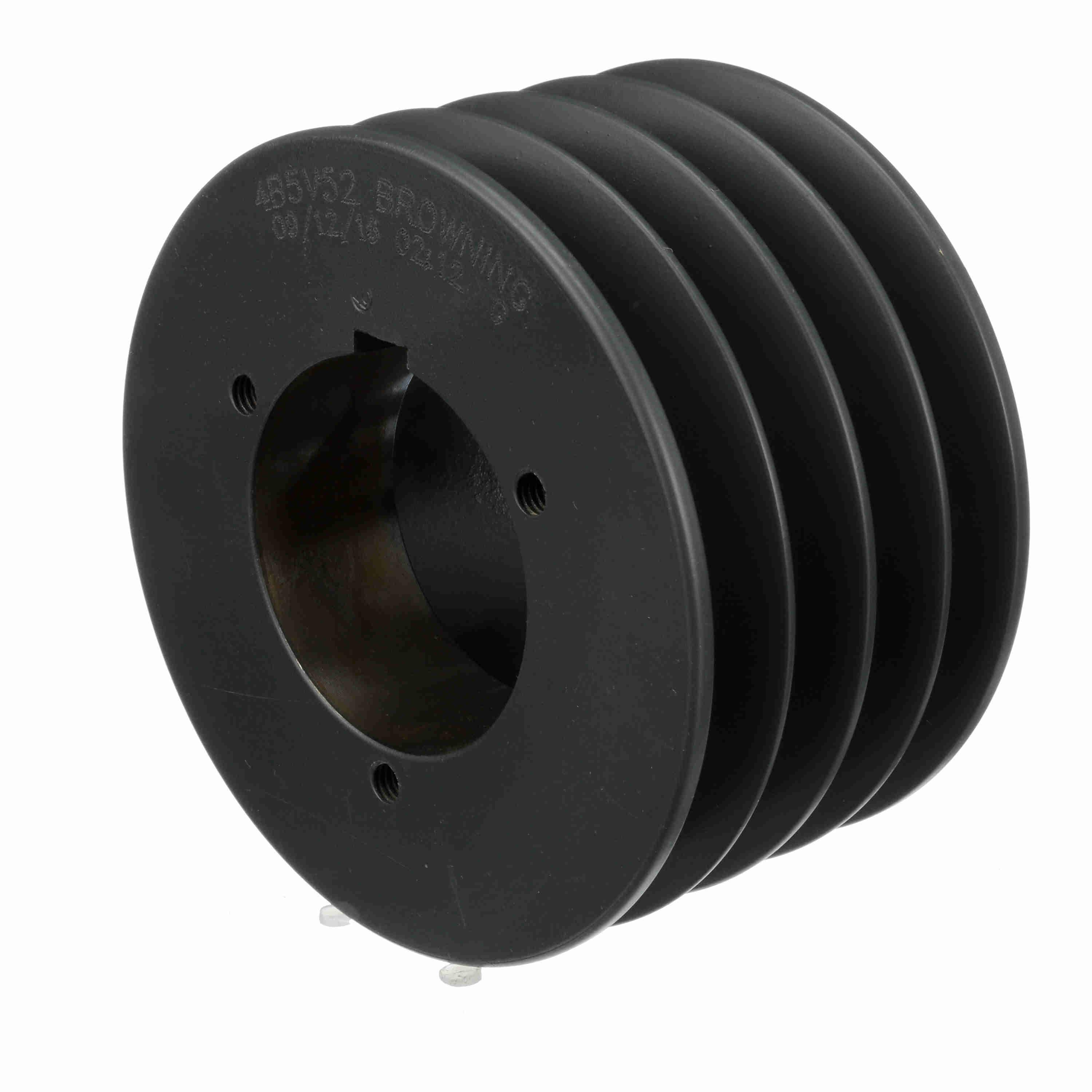

Browning® 3694478 B5V® Type 5 Multiple Sheave, 1/2 to 1-15/16 in Split Taper Bore, 5.48 in OD, 4 Grooves, 5.3 in (5V)/5 in (A)/5-1/2 in (B) Dia Pitch, 3-5/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289037377
-
Manufacturer Part Number3694478
-
CountryUSA
-
Face Width3-5/32 in
-
Bushing TypeB
-
Pitch Diameter5.3 in (5V)/5 in (A)/5-1/2 in (B)
-
MaterialCast Iron
-
TypeType 5
-
SeriesB5V®
-
Hub Projection55/64 in
-
Number of Grooves4
-
Outside Diameter5.48 in
-
Bore Diameter1/2 to 1-15/16 in
-
Bore TypeSplit Taper
-
Overall Length4-7/32 in
-
Suitable For Use WithGripbelt® A and B, 5V Cross Section Belts
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
-
Alternative Part Number4B5V52
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
