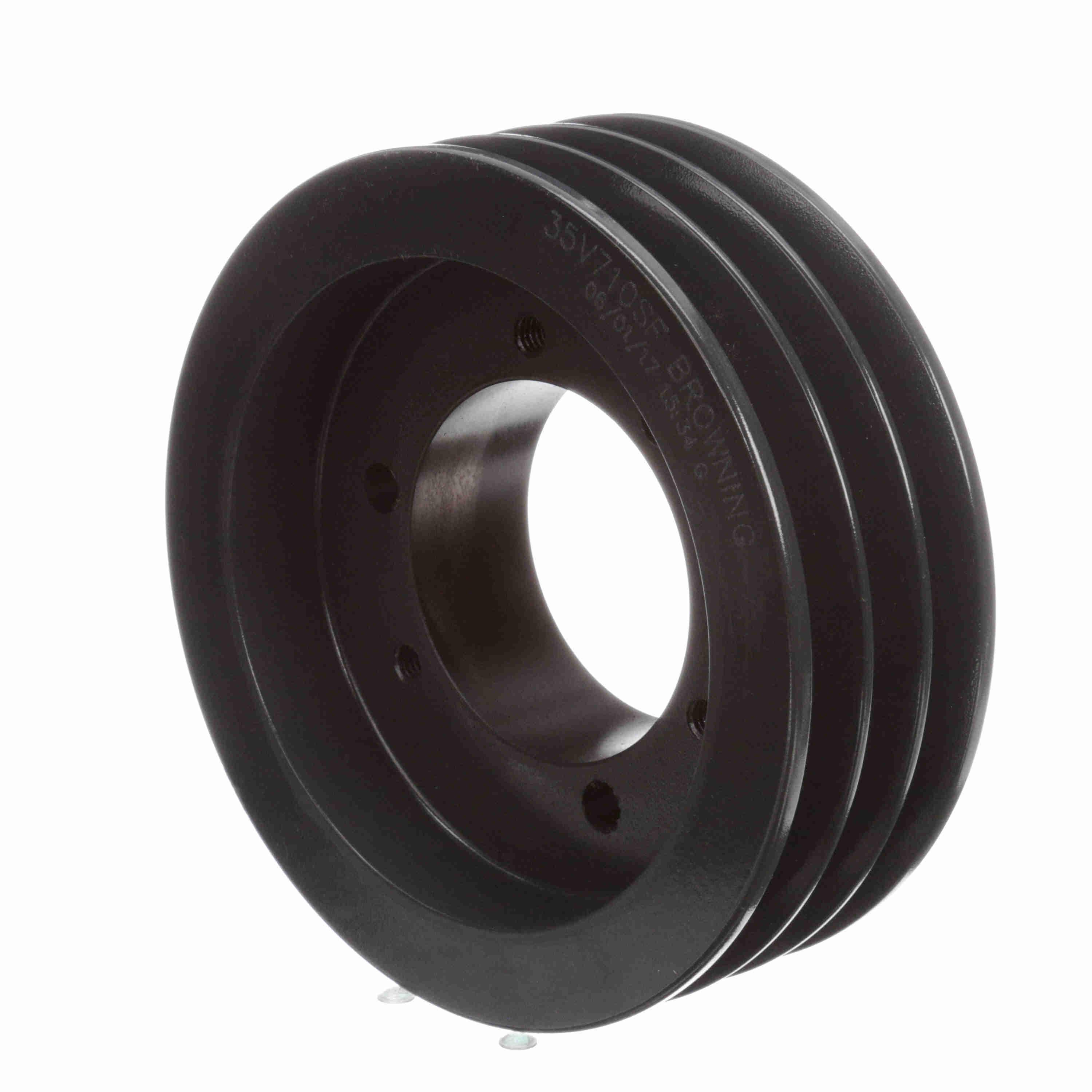

Browning® 1065754 Type A Solid Multiple Sheave, 1/2 to 2-15/16 in QD® Bore, 7.1 in OD, 3 Grooves, 7 in Dia Pitch, 2-3/8 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289356195
-
Manufacturer Part Number1065754
-
CountryUSA
-
Face Width2-3/8 in
-
Bushing TypeSF
-
Pitch Diameter7 in
-
MaterialCast Iron
-
TypeType A Solid
-
Number of Grooves3
-
Outside Diameter7.1 in
-
Bore Diameter1/2 to 2-15/16 in
-
Bore TypeQD®
-
Suitable For Use WithGripBelt® 5V Cross Section V-Belt
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number35V710SF
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
