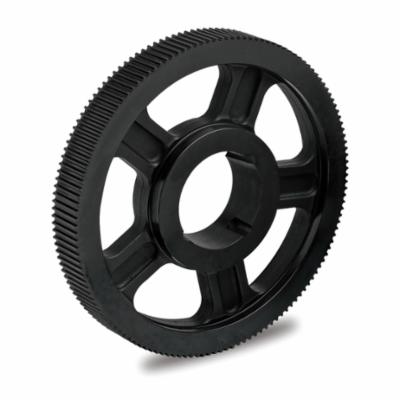

14MX-67S-68-3525 Dodge® 482117 HT500 Type A2F High Torque Belt Sprocket, 1-3/16 to 3-15/16 in Taper-Lock® Bore, 11.645 in OD, 67 Grooves, 11.755 in Dia Pitch, 3.33 in W Face
The Dodge® high torque HT500 synchronous drive product line utilizes a modified curvilinear tooth profile to delivers high torque, low maintenance and high energy efficiency with less overhung load than V-belt drives. The HT500 product family features a complete offering of synchronous sprockets with shaft attachment options including taper-lock and QD bushings (fin fan), as well as minimum plain bore sprockets (MPB) and idler sprockets available from stock.
-
BrandDodge®
-
UPC782476699581
-
Manufacturer Part Number482117
-
CountryUSA
-
Face Width3.33 in
-
Bushing TypeTaper-Lock®
-
Pitch14 mm
-
Pitch Diameter11.755 in
-
Flange Diameter12-1/2 in
-
TypeType A2F
-
SeriesHT500
-
Number of Grooves67
-
Outside Diameter11.645 in
-
Bore Diameter1-3/16 to 3-15/16 in
-
Bore TypeTaper-Lock®
- 5% or more energy efficient
- More torque with less belts
- Compact design
- Less maintenance
- Less belt pull
- Synchronous belts do not need to be re-tensioned after it is installed HT500 belt runs slip free requiring less maintenance and re-tensioning
- HT500 belts operate in wet, dusty and oily environments, it also has the capability to handle higher temperature than V-belts
- No lubrication required when compared to roller chain drives savings opportunity
- Ideal to convert legacy 20 mm HTD drive system cost savings opportunity with drive optimization
-
Alternative Part Number14MX-67S-68-3525
-
UNSPSC26111807
-
Specification Sheet
-
Catalog
