Gates® Power Transmission Super HC® 5VX780 Heavy Duty Molded Notch V-Belt, 5VX Section, 5/8 in W Top, 78 in L Outside, 35/64 in THK, EPDM
Finding a belt that fits into your compact machinery without sacrificing power or efficiency is a daily challenge. When every inch of space is precious and traditional belts just don't cut it, the Super HC Molded Notch (MN) V-belt is your solution. This bandless, high-performance belt, crafted from ethylene elastomer with precision-molded notches, provides superior cord support and flexibility to improve load distribution and reduce maintenance needs. Whether you aim to boost your drive efficiency or minimize downtime, Gates Super HC MN V-belts deliver the durability and performance to keep your industrial processes running smoothly.
-
BrandGates® Power Transmission
-
UPC72053479805
-
Manufacturer Part Number5VX780
-
CountryUSA|Canada
-
Temperature Range-70 to 250 deg F
-
Thickness35/64 in
-
MaterialEPDM
-
Top Width5/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeHeavy Duty Molded Notch
-
Minimum Pulley Diameter7.958 in
-

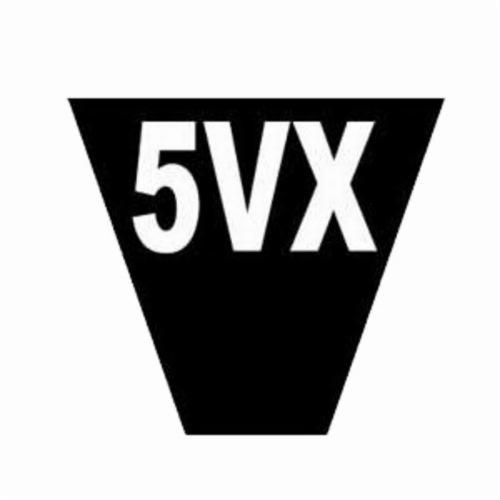

Section Size5VX
-
Series9414
-
Number of Ribs1
-
Outside Length78 in
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 01812732 |
-
Alternative Part Number94140780
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
