Gates® Power Transmission Super HC® 5VX1320 Heavy Duty Molded Notch V-Belt, 5VX Section, 5/8 in W Top, 132 in L Outside, 35/64 in THK, EPDM
Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as transmitting more horsepower than the classical cross-sections in the same amount of drive space.
-
BrandGates® Power Transmission
-
UPC072053290509
-
Manufacturer Part Number5VX1320
-
CountryUSA
-
Temperature Range-70 to 250 deg F
-
Thickness35/64 in
-
MaterialEPDM
-
Top Width5/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeHeavy Duty Molded Notch
-
Minimum Pulley Diameter7.958 in
-

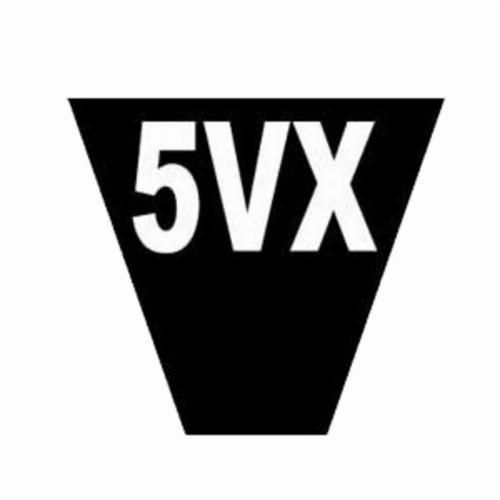

Section Size5VX
-
Series9414
-
Number of Ribs1
-
Outside Length132 in
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00676969 |
-
Alternative Part Number94141320
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
