Gates® Power Transmission Predator® PowerBand® 3/5VP630 Banded Heavy Duty V-Belt, 5VP Section, 5/8 in W Top, 63 in L Outside, 35/64 in THK, Chloroprene
Made to take on your toughest jobs, Predator Single & PowerBand banded belts are the market leading heavy duty V-belts. The stronger than steel extra heavy-duty belt construction is designed to handle high horsepower motors, frequent shock loads, high heat and the harshest operating environments in extremely demanding applications. They provide extraordinary high-impact strength, capacity and wear resistance. Unique in their extreme robustness and high load carrying capability, they are unrivaled.
-
BrandGates® Power Transmission
-
UPC72053469882
-
Manufacturer Part Number3/5VP630
-
CountryUSA|Canada
-
Thickness35/64 in
-
MaterialChloroprene
-
Top Width5/8 in
-
Reinforced MaterialAramid
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter7.958 in
-
Section Size5VP
-
Series9181
-
Number of Ribs3
-
Outside Length63 in

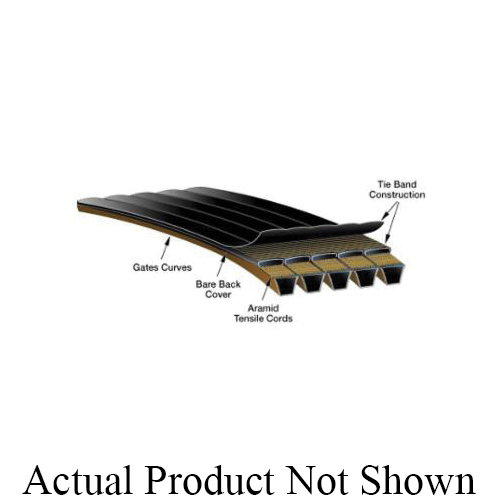

- Bareback cover resists debris and allows the belt to slip under extreme shock load conditions, reducing heat buildup and prolonging belt life
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
- Aramid tensile cords combine limited stretch with extraordinary strength and durability that is pound-for-pound stronger than steel
- Multiple layer tie band provides excellent lateral rigidity to prevent belts from turning over or from coming off of the drive
-
Alternative Part Number91813063
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
