Gates® Power Transmission Polyflex® 7M650 Light Duty V-Belt, 7M Section, 9/32 in W Top, 25.59 in L Outside, 7/32 in THK, High Modulus Polyurethane
Developed by Gates and produced to patented manufacturing processes, these belts provide more load-carrying capacity at higher speeds to small multiple V-belt precision drives. This results in significant cost savings and improved design freedom.
-
BrandGates® Power Transmission
-
UPC072053302042
-
Manufacturer Part Number7M650
-
CountryUSA|Canada
-
Temperature Range-65 to 180 deg F
-
Thickness7/32 in
-
MaterialHigh Modulus Polyurethane
-
Top Width9/32 in
-
Reinforced MaterialPolyester
-
TypeLight Duty
-
Minimum Pulley Diameter2.546 in
-
Section Size7M
-
Series8903
-
Number of Ribs1
-
Outside Length25.59 in

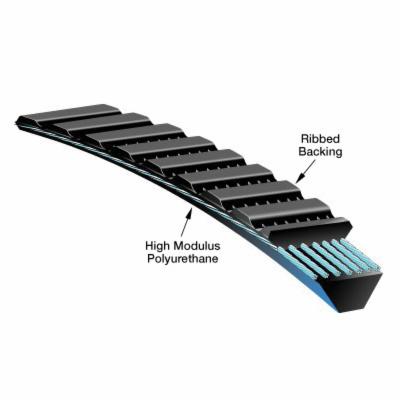

- High modulus polyurethane compound resists fatigue, wear, ozone and most environmental conditions
- Precise casting method eliminates layers and overlaps for smooth running and low vibration
- Ribbed backing provides greater lateral stability and relieves bending stress
- Unique 60 deg angle polyurethane construction transmits greater loads at higher speeds in less space than conventional V-belts
-
Alternative Part Number89030650
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
