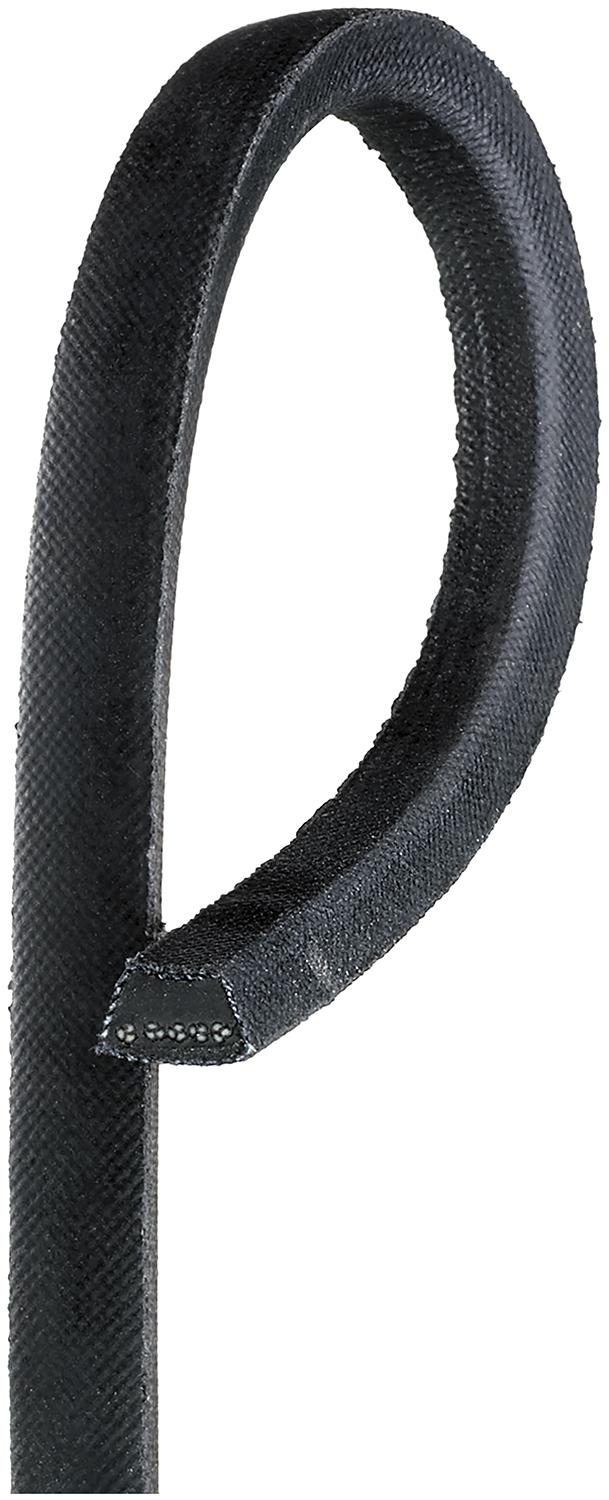

Gates® Power Transmission 3L220 Power Transmission Belt, 3 L Section, 0.38 in W Top, 22 in L Outside, 0.22 in THK, SBR
Engineered with all the qualities of a great belt, including flexibility, durability and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.
-
BrandGates® Power Transmission
-
UPC072053001051
-
Manufacturer Part Number3L220
-
CountryUSA
-
Temperature Range-22 to 140 deg F
-
Thickness0.22 in
-
MaterialSBR
-

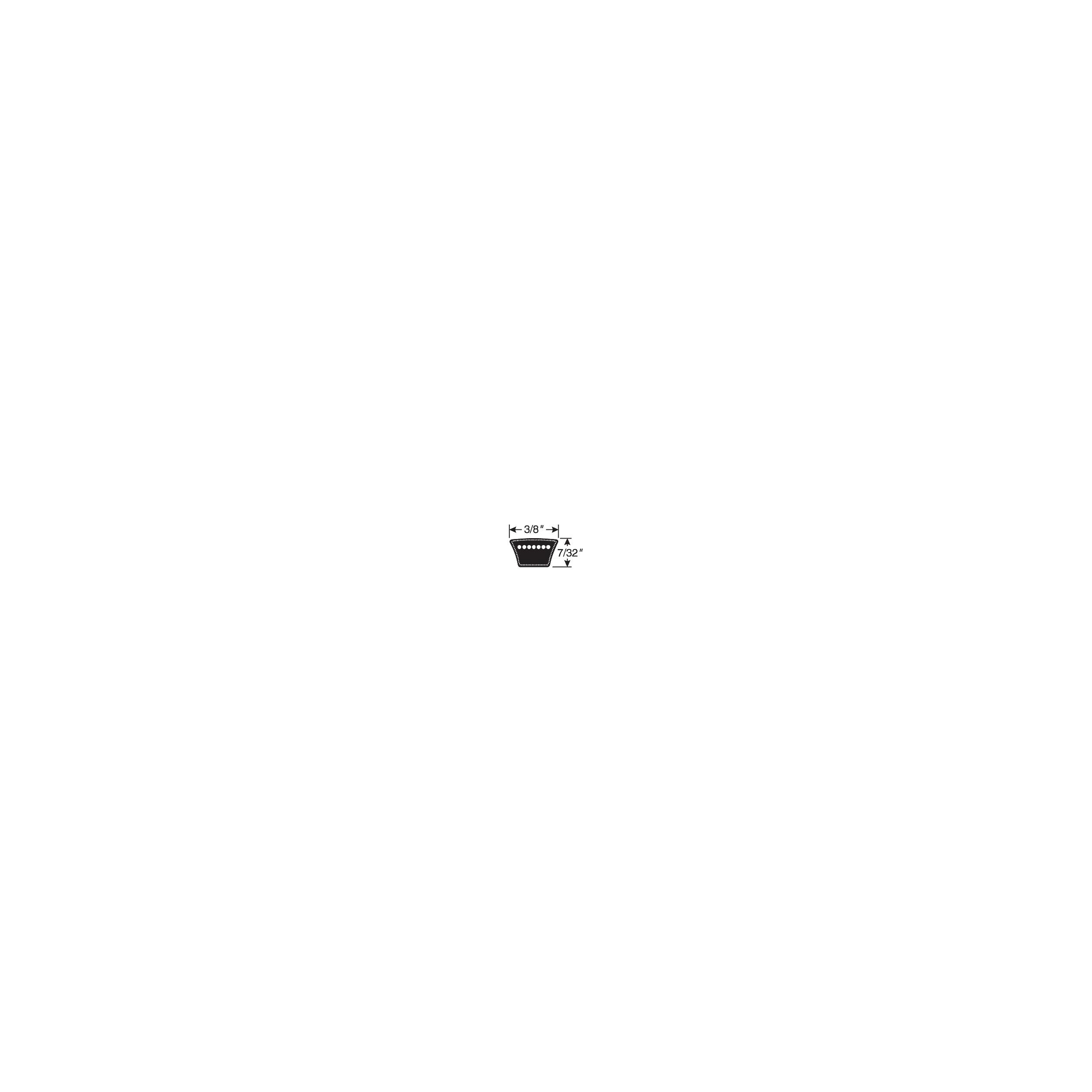

Top Width0.38 in
-
Reinforced MaterialPolyester
-
ColorBlack
-
TypePower Transmission
-
Section Size3 L
-
Number of Ribs1
-
Outside Length22 in

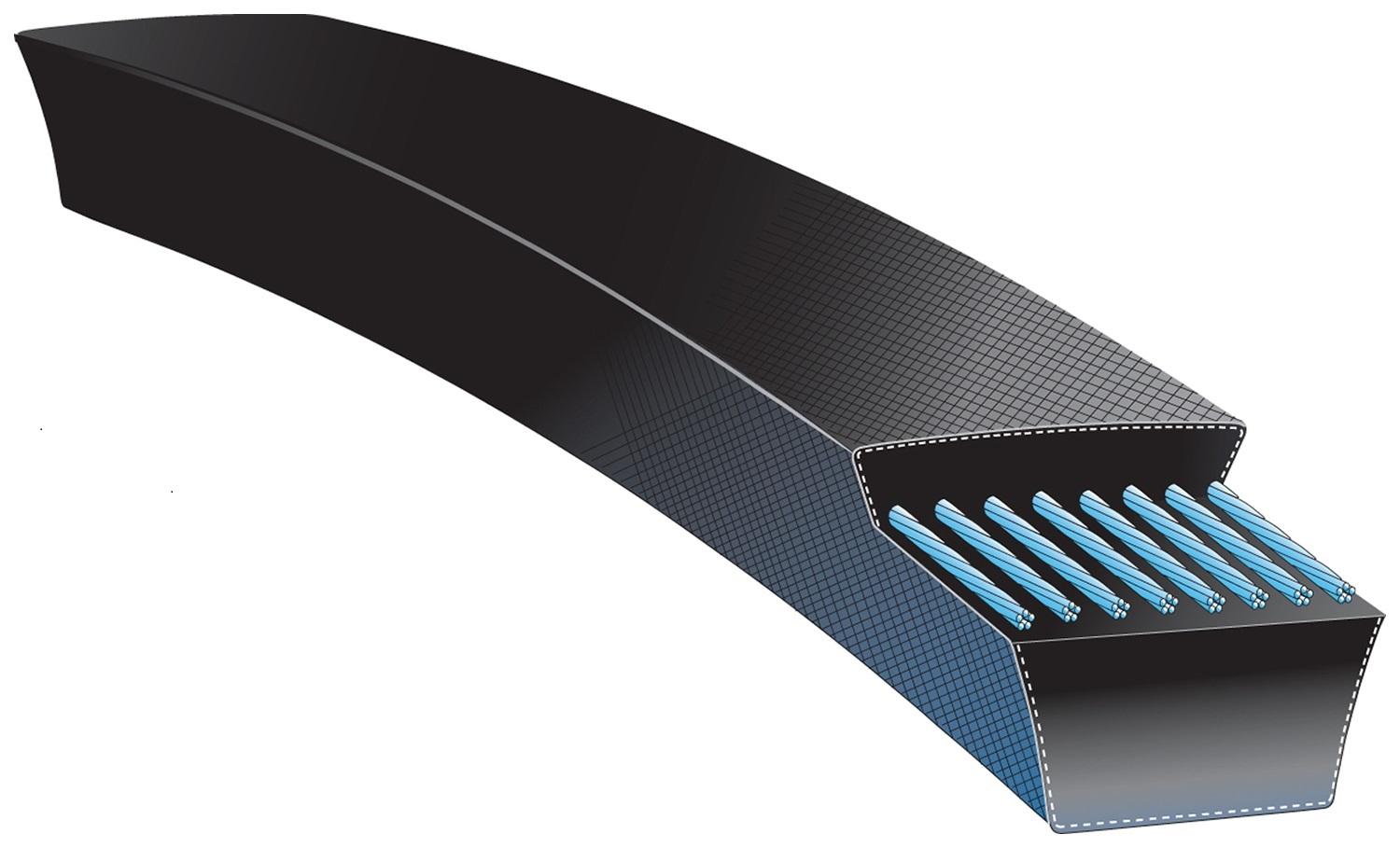

- Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Flex-Weave oil and heat resistant cover protects the belt core from the toughest environments
- Perfect for auxiliary automotive applications like electric windows, windshield wipers, central locking systems, drive pumps, power tools, domestic appliance applications, FHP motors and light-duty applications
-
Alternative Part Number84001220
-
IncludesThin Profile
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2 and IP-3-3|REACH and RoHS 2 Compliant
-
