Gates® Power Transmission Polyflex® JB® 3/11M2300JB Joined Band Light Duty V-Belt, 11M Section, 7/16 in W Top, 89.9 in L Outside, 9/32 in THK, High Modulus Polyurethane
Developed by Gates and produced to patented manufacturing processes, these belts provide more load-carrying capacity at higher speeds to small multiple V-belt precision drives. This results in significant cost savings and improved design freedom.
-
BrandGates® Power Transmission
-
UPC72053260632
-
Manufacturer Part Number3/11M2300JB
-
CountryUSA|Canada
-
Temperature Range-65 to 180 deg F
-
Thickness9/32 in
-
MaterialHigh Modulus Polyurethane
-
Top Width7/16 in
-
Reinforced MaterialPolyester
-
TypeJoined Band Light Duty
-
Minimum Pulley Diameter3.82 in
-
Section Size11M
-
Series8914
-
Number of Ribs3
-
Outside Length89.9 in

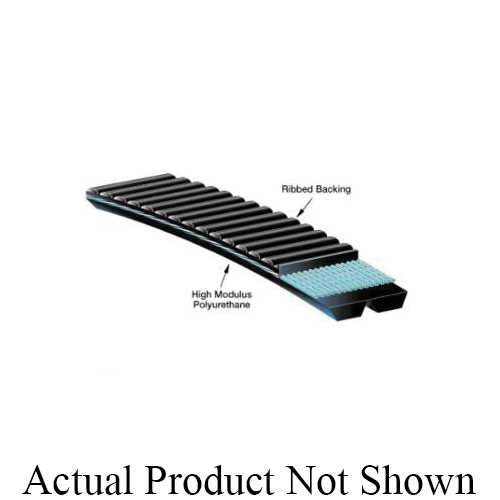

- High modulus polyurethane compound resists fatigue, wear, ozone and most environmental conditions
- Precise casting method eliminates layers and overlaps for smooth running and low vibration
- Ribbed backing provides greater lateral stability and relieves bending stress
- Joined belt construction provides high stability, preventing belts from turning over or coming off of the drive
-
Alternative Part Number89143230
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
