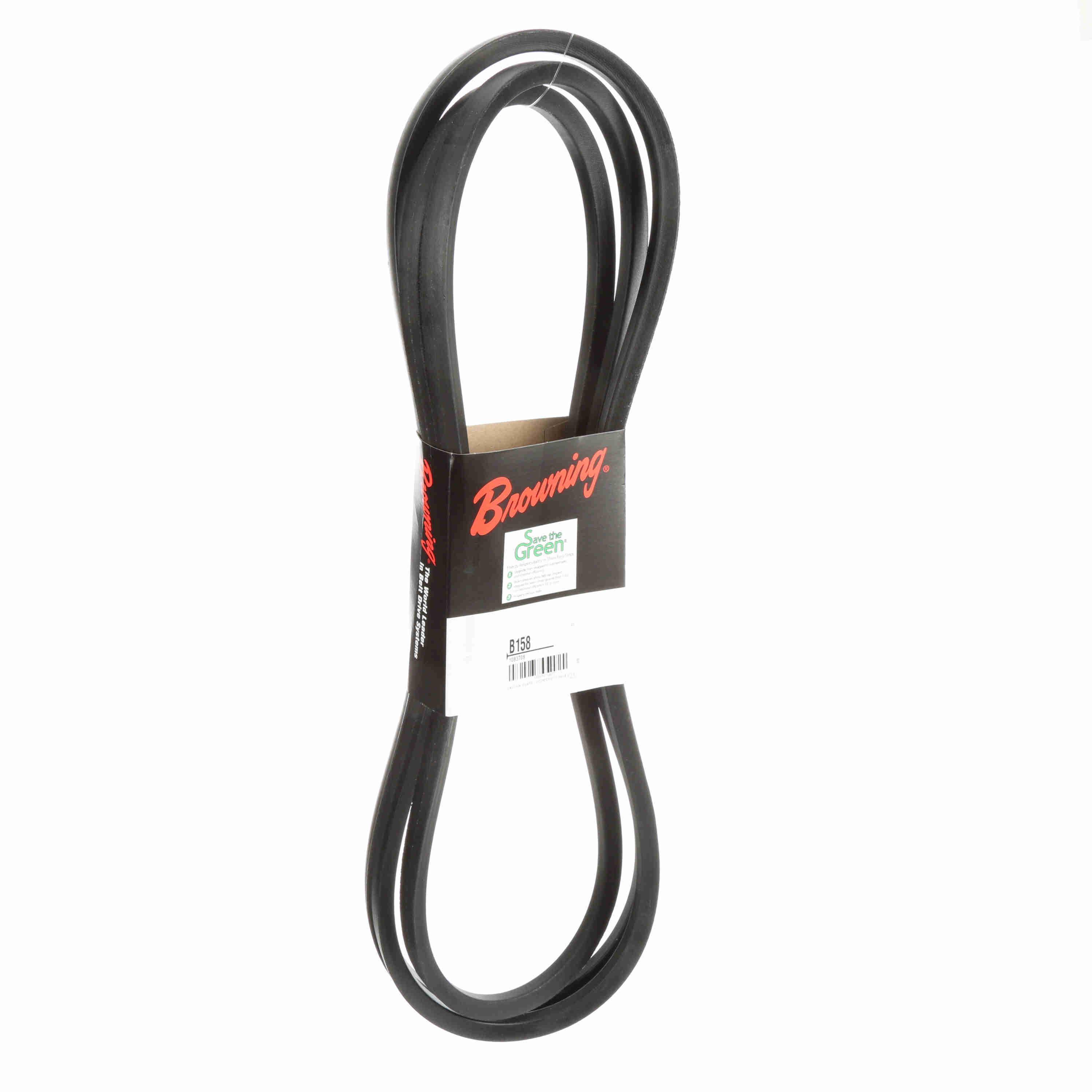

Browning® GripBelt® 1083708 Non-Cogged Super V-Belt, B Section, 21/32 in W Top, 161 in L Outside, 7/16 in THK, Neoprene
Browning® Classical V-Belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap V-Belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged V-Belts are up to 3% more efficient than the wrapped designs. Additionally, they are offered in all standard sizes.
-
BrandBrowning®
-
UPC662289119677
-
Manufacturer Part Number1083708
-
CountryUSA
-
Temperature Range230 deg F
-
Thickness7/16 in
-
MaterialNeoprene
-
Top Width21/32 in
-
Reinforced MaterialSynthetic Fiber
-
TypeNon-Cogged
-
Section SizeB
-
Number of Ribs1
-
Outside Length161 in
- Wrapped construction - Provides smooth quiet operation
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the "Code 1 in Match belt system on all classical and "358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Unique design enhances performance and provides increased horsepower capacity in a shorter center drive
- Reduced overlap provides lower vibration and reduced noise during operation
- High strength, synthetic fiber cords carry the horsepower load and minimize stretching
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Wrapped construction - Provides smooth quiet operation
-
Alternative Part NumberB158
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
Warranty1 Year
-
Instruction/Installation Manual
