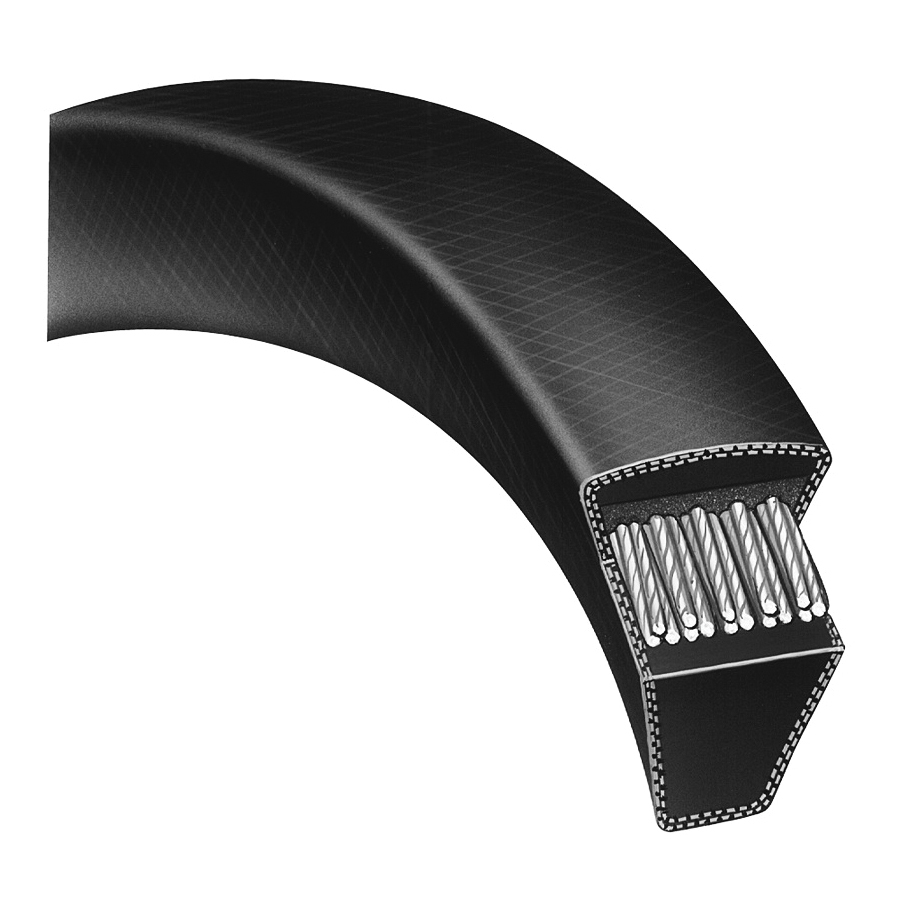

Bando Power King® SPB2500 Classical V-Belt, SPB Section, 16 mm W Top, 2500 mm L Outside, 13.5 mm THK, Banprene® Impregnated Fabric
In addition to belts manufactured to ARPM (Association for Rubber Products Manufacturers) standards, Bando produces belts to European standard DIN 7753 and ISO4184. These standards are based on the metric system of measure and have different cross section designations. The Narrow Wedge profile allows for higher speed ratios, shorter center distances, and more compact drives. They are direct replacements for belts on imported machinery and on domestic equipment for export.
-
BrandBando
-
UPC649717388874
-
Manufacturer Part NumberSPB2500
-
CountryUSA
-
Thickness13.5 mm
-
MaterialBanprene® Impregnated Fabric
-
Top Width16 mm
-
Reinforced MaterialPolyester
-
TypeClassical
-
Section SizeSPB
-
Outside Length2500 mm
- Oil and heat resistant bias cut envelope protects the belt's inner components against dirt, oil and heat
- Banprene® impregnated fabric provides lateral stability while permitting axial flexibility for operating around small pulley diameters
- High density polyester tension members treated for fatigue and elongation resistance minimize maintenance costs
- Banprene® compression section maintains tension member cross section uniformity while remaining flexible enough to reduce heat build up one of the primary causes of premature belt failure
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM Standard|European Standard DIN 7753|RMA IP-20
-
Warranty1 year
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
