Gates® Power Transmission Tri-Power® PowerBand® 2/BX136 Heavy Duty Molded Notch V-Belt, BX Section, 21/32 in W Top, 139.6 in L Outside, 13/32 in THK, EPDM
Built for superior performance on heavy duty classical cross-section drives. The raw edge, Ethylene Elastomer construction and special notch design makes the Tri-Power belt especially suited for small diameter pulleys and back side idler drives.
-
BrandGates® Power Transmission
-
UPC072053232622
-
Manufacturer Part Number2/BX136
-
CountryUSA|Canada
-
Temperature Range-60 to 250 deg F
-
Thickness13/32 in
-
MaterialEPDM
-
Top Width21/32 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeHeavy Duty Molded Notch
-
Section SizeBX
-
Series9098
-
Number of Ribs2
-
Outside Length139.6 in

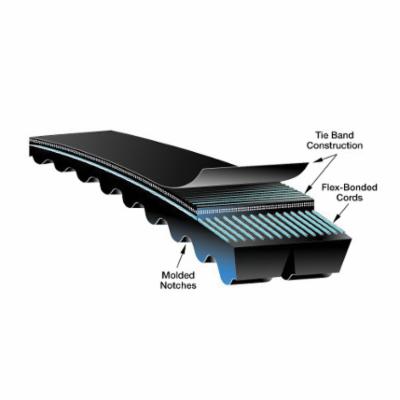

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Patented ethylene material construction provides -60 to 250 deg F temperature range to resist belt cracking
-
Alternative Part Number90982136
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Specification Sheet
