Gates® Power Transmission Hi-Power® II PowerBand® 2/B112 Banded Heavy Duty V-Belt, B Section, 21/32 in W Top, 115 in L Outside, 13/32 in THK, EPDM
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
-
BrandGates® Power Transmission
-
UPC072053242867
-
Manufacturer Part Number2/B112
-
CountryUSA|Canada
-
Thickness13/32 in
-
MaterialEPDM
-
Top Width21/32 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter5.73 in
-
Section SizeB
-
Series9093
-
Number of Ribs2
-
Outside Length115 in

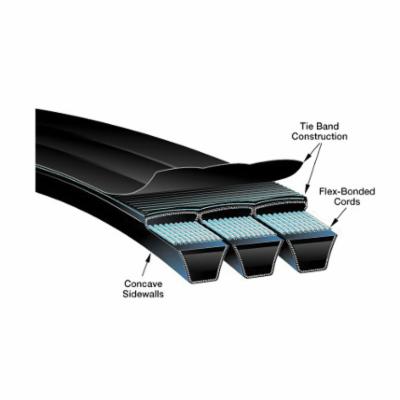

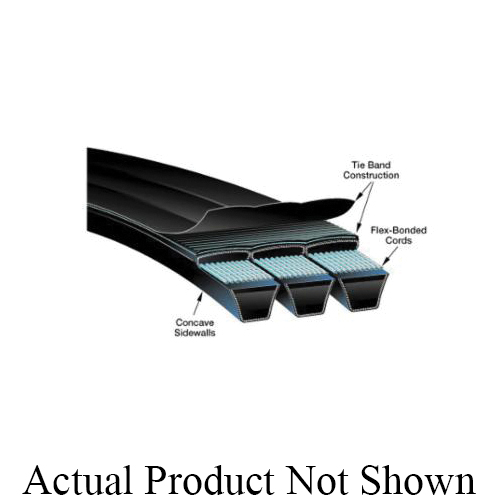

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
- Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 00684260 |
-
Alternative Part Number90932112
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
