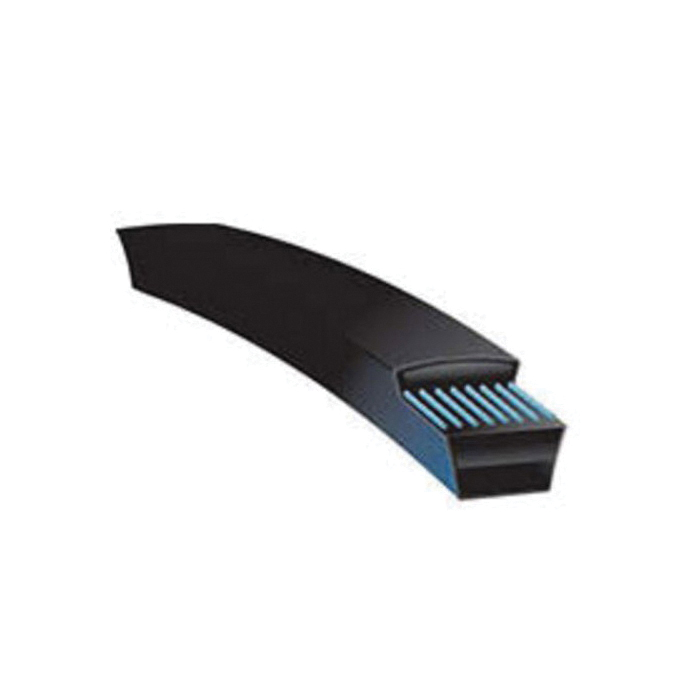

Gates® Power Transmission Hi-Power® A24 Classical Heavy Duty V-Belt, A Section, 1/2 in W Top, 26 in L Outside, 5/16 in THK, EPDM
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
-
BrandGates® Power Transmission
-
UPC72053201208
-
Manufacturer Part NumberA24
-
CountryUSA|Canada
-
Thickness5/16 in
-
MaterialEPDM
-
Top Width1/2 in
-
Reinforced MaterialPolyester
-
TypeClassical Heavy Duty
-
Section SizeA
-
Series9002
-
Number of Ribs1
-
Outside Length26 in
- Gates® curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
- Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
- Multi-duty recommended sheaves
- Suitable for all industrial applications, including v-flat drives
- Meets RMA oil and heat resistant standards
- Meets RMA static conductivity requirements
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00677516 |
-
Alternative Part Number90022024
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsISO 1813|RMA Standard
-
