Gates® Power Transmission Hi-Power® II A144 Banded Heavy Duty V-Belt, A Section, 1/2 in W Top, 146 in L Outside, 5/16 in THK, EPDM
The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
-
BrandGates® Power Transmission
-
UPC72053201017
-
Manufacturer Part NumberA144
-
CountryUSA|Canada
-
Thickness5/16 in
-
MaterialEPDM
-
Top Width1/2 in
-
Reinforced MaterialFlex-Bonded Polyester
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter4.138 in
-
Section SizeA
-
Series9002
-
Number of Ribs1
-
Outside Length146 in

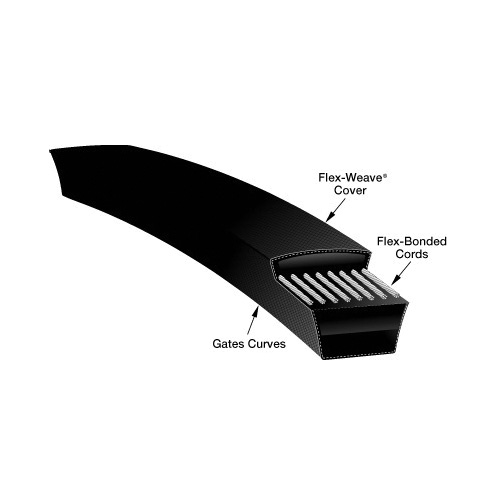

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
- Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging
| Competitor Name | Cross-Reference Number |
|---|---|
| Motion Industries | 00678186 |
-
Alternative Part Number90022144
-
UNSPSC26111801
-
Package DescriptionEACH
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
