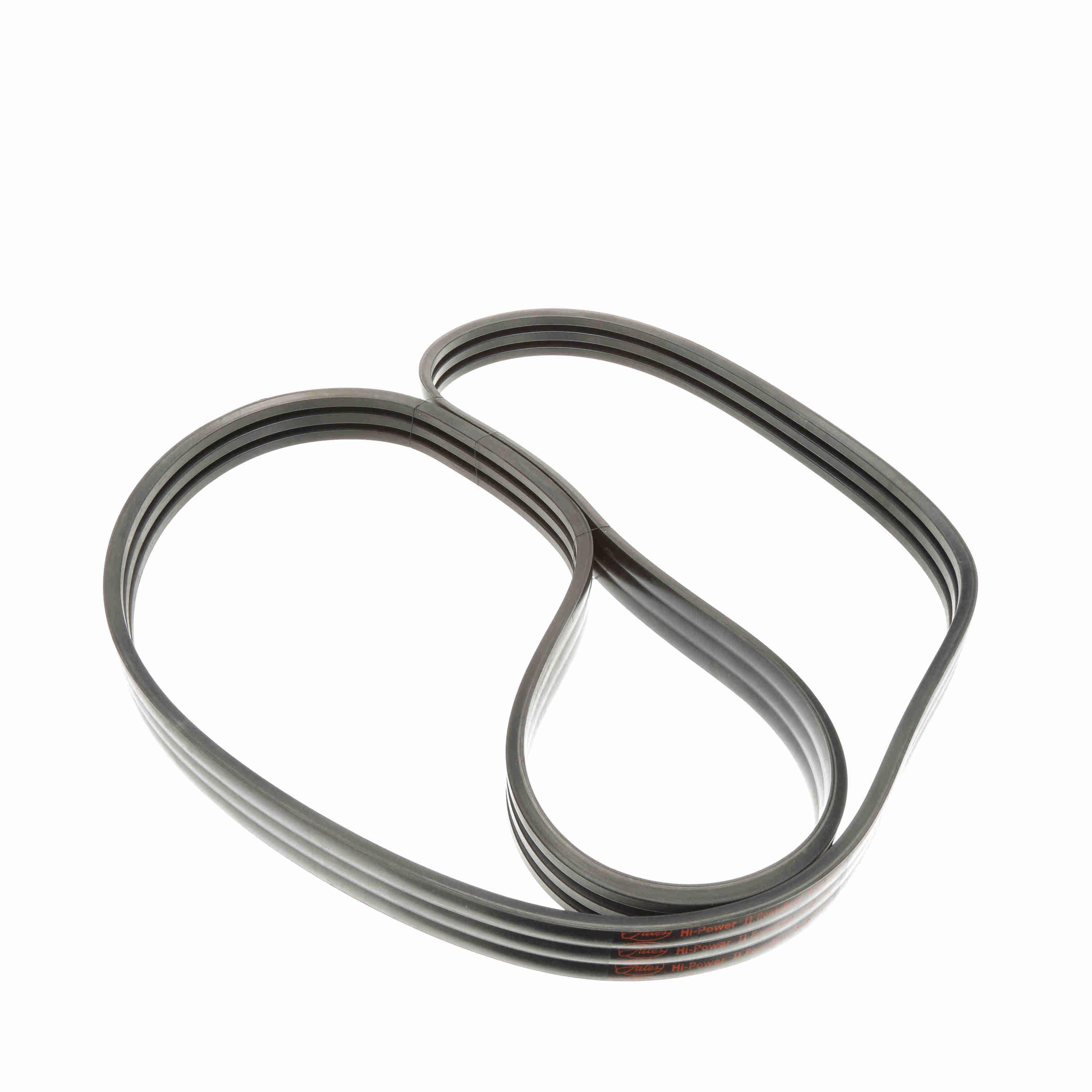

Browning 3-GRV BANDED C-158 V-BELTS BRW 3-GB-C-158
Browning® classical V-belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap V-Belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged V-Belts are up to 3% more efficient than the wrapped designs. Additionally, they are offered in all standard sizes.
-
BrandBrowning®
-
UPC662289151424
-
Manufacturer Part Number1085869
-
CountryUSA
-
Temperature Range140 deg F
-
Thickness17/32 in
-
MaterialNeoprene
-
Top Width7/8 in
-
Reinforced MaterialPolyester
-
ColorBlack
-
TypeNon-Cogged
-
Section SizeGBC
-
Number of Ribs3
-
Outside Length162 in
- Ideal for pulsing loads
- Eliminates the possibility of belt turnover on narrow and long centers banded belts assure all belts within the drive run in uniformity to the sheaves without any possibility of belt turnover even when centers are very long
- All Browning® banded belts provide the belt solution for pulsing/shock loads and the demands of the aggregate industry
- The banding material aids in preventing material from getting between the sheave and belts
- Oil and heat resistant
- Static conducting
-
Alternative Part Number3GBC158
-
UNSPSC26111801
-
Package Description1/PK
-
Standards/ApprovalsRMA Standard
-
Warranty1 Year
-
Instruction/Installation Manual
-
Warranty Information
