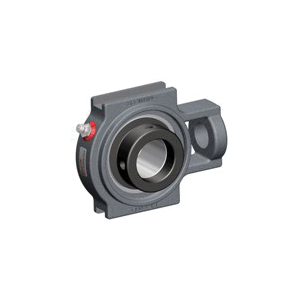

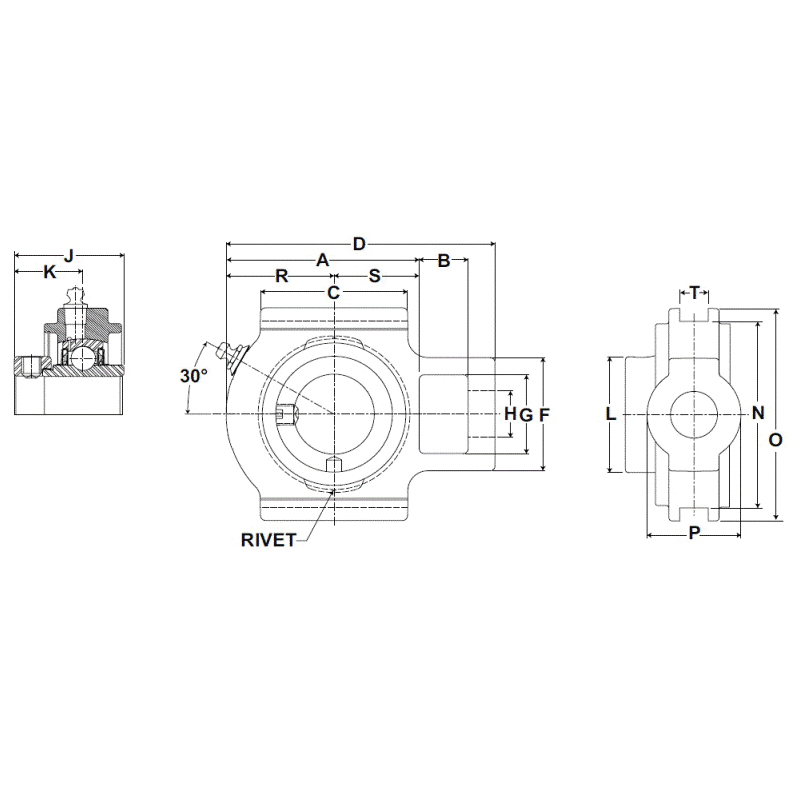

Browning® 767822 VTWE Non-Expansion Normal Duty Take-Up Ball Bearing Unit With Seal Flinger, 3/4 in Dia Bore, 4 in L x 1-3/8 in W x 3-1/2 in H, 2611 lb Dynamic/1444 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289528042
-
Manufacturer Part Number767822
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeNon-Expansion Normal Duty
-
Height3-1/2 in
-
Width1-3/8 in
-
SeriesVTWE
-
Bearing MaterialSteel
-
Length4 in
-
Bore Diameter3/4 in
-
Suitable For Use With1SF10, 3SF10, 6SF10, 9SF10 Frames
- Eccentric locking device
- Single lip contact seal
- Cast iron housing material
- Nylon retainer
- Wide slot
- Zone hardened inner race
-
Alternative Part NumberVTWE-212
-
UNSPSC31171516
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
-
Warranty Information
-
Specification Sheet
