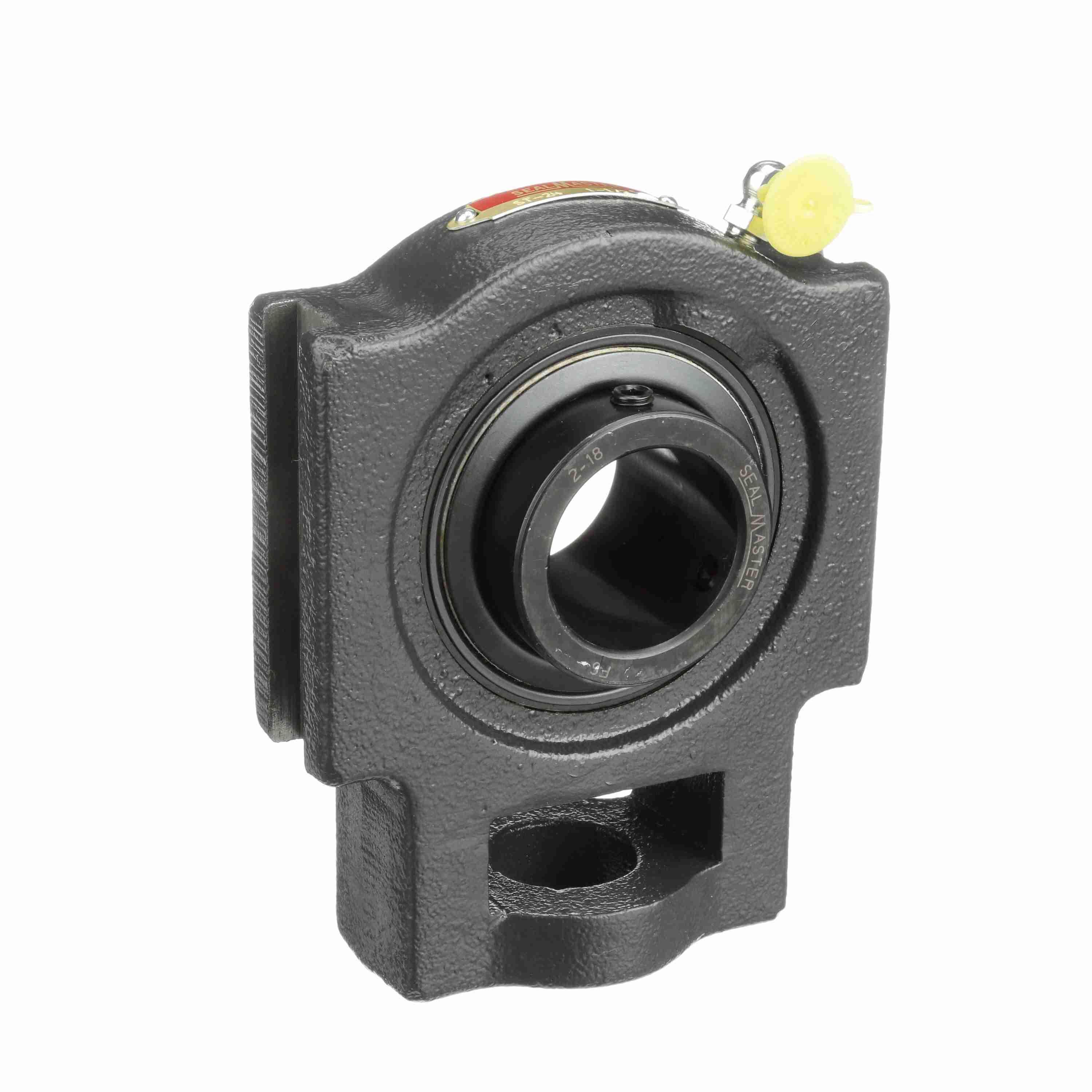

Sealmaster® 700742 Standard Duty Wide Slot Take-Up Ball Bearing Unit With Seal Flinger, 1-9/16 in Dia Bore, 5-11/16 in L x 2-1/8 in W x 4-1/2 in H, 7340 lb Dynamic/4467 lb Static Load
Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461006214
-
Manufacturer Part Number700742
-
CountryUSA
-
Load Capacity7340 lb Dynamic/4467 lb Static
-
Temperature Rating250 deg F
-
FinishUncoated
-
TypeStandard Duty Wide Slot
-
Height4-1/2 in
-
Width2-1/8 in
-
SeriesST Series
-
Bearing MaterialSteel
-
Length5-11/16 in
-
Bore Diameter1-9/16 in
-
Suitable For Use WithSTH-25 Center Pull Take Up Frame
- Metal land riding retainer type
- Wide outer race
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberST-25
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
