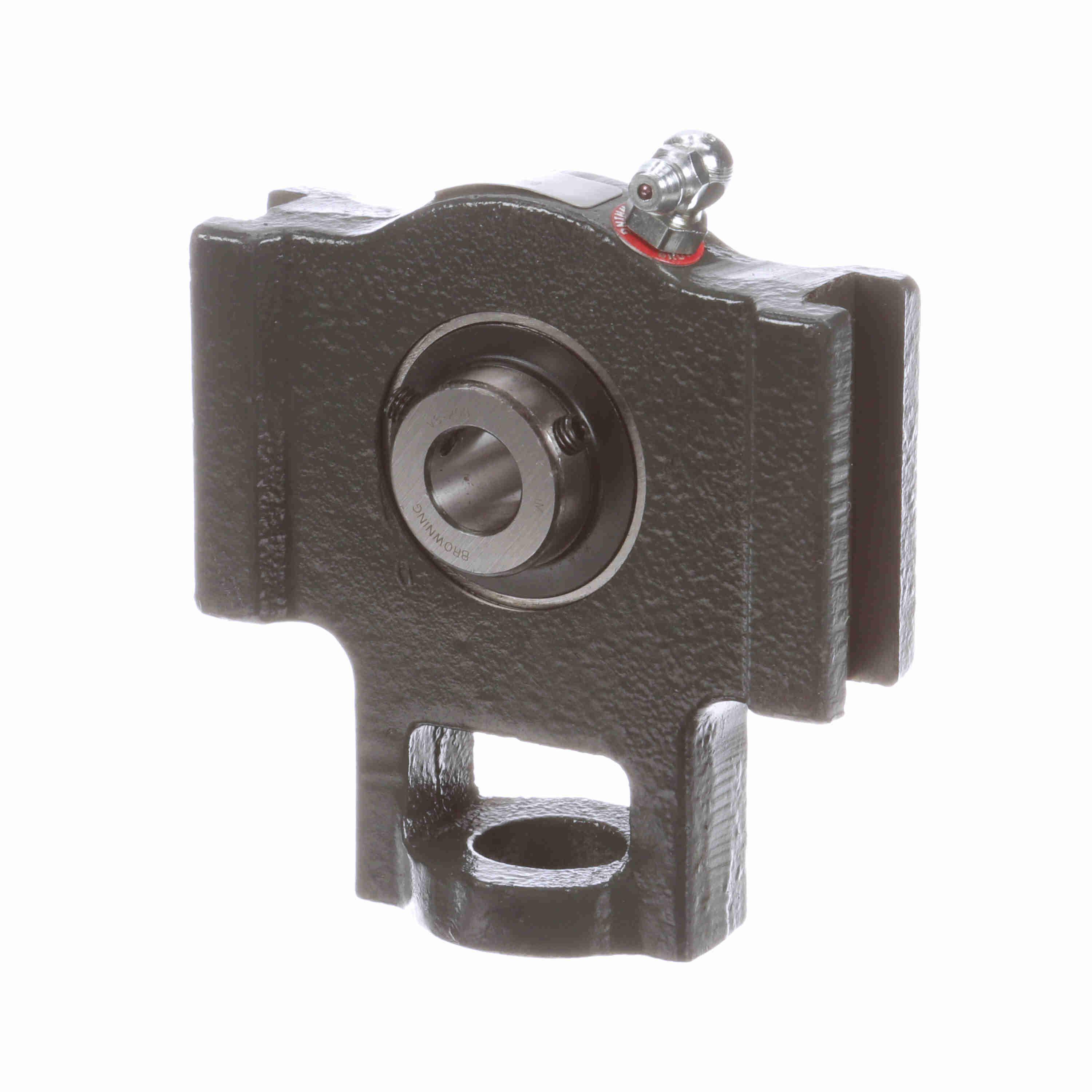

Browning® 767544 VTWS Normal Duty Take-Up Ball Bearing Unit With Seal Flinger, 1/2 in Dia Bore, 3-11/16 in L x 1-3/8 in W x 3-1/2 in H, 2108 lb Dynamic/1117 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289542758
-
Manufacturer Part Number767544
-
CountryUSA
-
Load Capacity2108 lb Dynamic/1117 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeNormal Duty
-
Height3-1/2 in
-
Width1-3/8 in
-
SeriesVTWS
-
Bearing MaterialSteel
-
Length3-11/16 in
-
Bore Diameter1/2 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Powder coat epoxy cast iron housing
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVTWS-208
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
