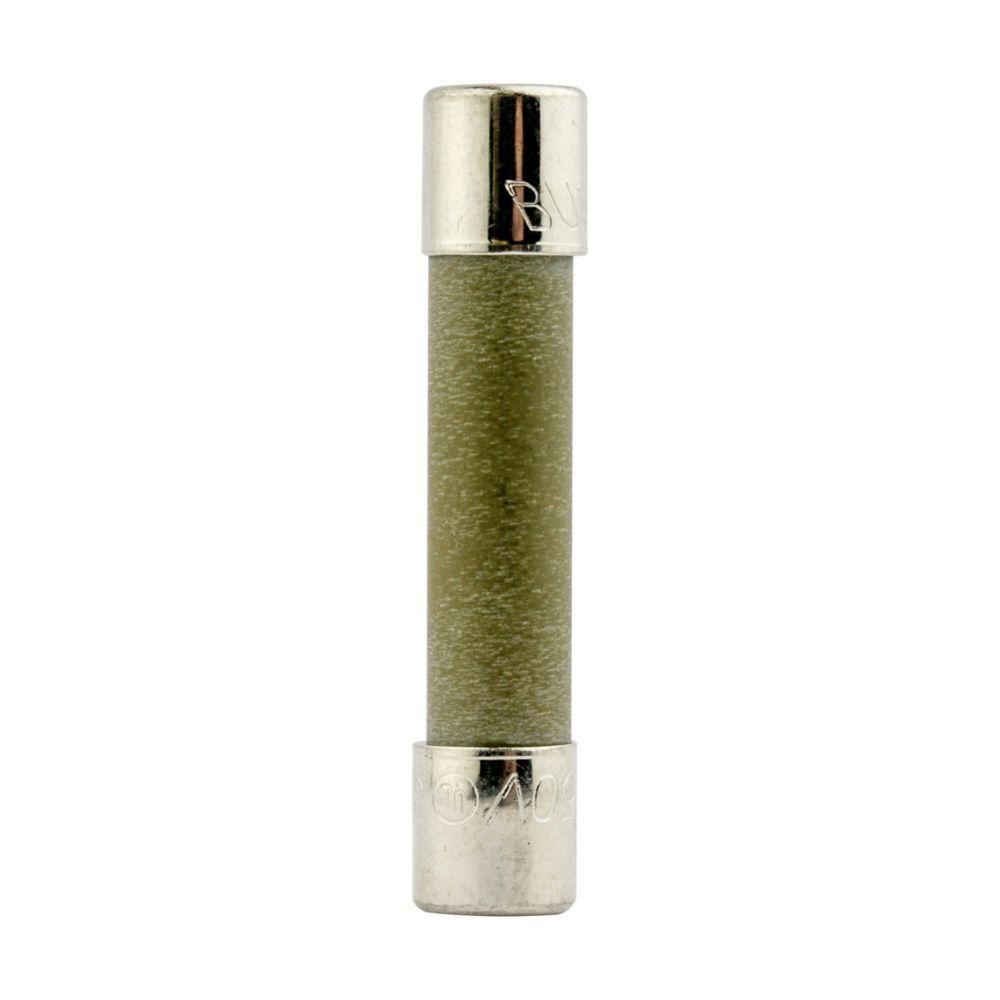

Edison ABC-30 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 30 A, 250 VAC, 125 VDC, 200 A, 400 A, 1 kA Interrupt, Cylindrical Body
Edison ABC-30 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 30 A, 250 VAC, 125 VDC, 200 A, 400 A, 1 kA Interrupt, Cylindrical Body
-
BrandEdison
-
UPC051712700184
-
Manufacturer Part NumberABC-30
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
Response Time4 hr, 60 min, 120 s
-
TypeElectronic Small Dimension
-
Mounting TypeHolder
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating30 A
-
SeriesABC
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 A, 400 A, 1 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCylindrical
- Ceramic body allows for higher amp/volt rating combinations
- 200 A at 250 VAC, 1 kA at 125 VAC, 400 A at 125 VDC, 1 kA at 75 VDC interrupt rating
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200% response time
-
Alternative Part Number8407101
-
UNSPSC39121609
-
IDEA Index ID8407101
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Class 1422-01/1422-30|CSA File No. 53787|UL 248-14 Guide JDYX|UL File No. E19180|CE Certified
-
Owners/User Manual
