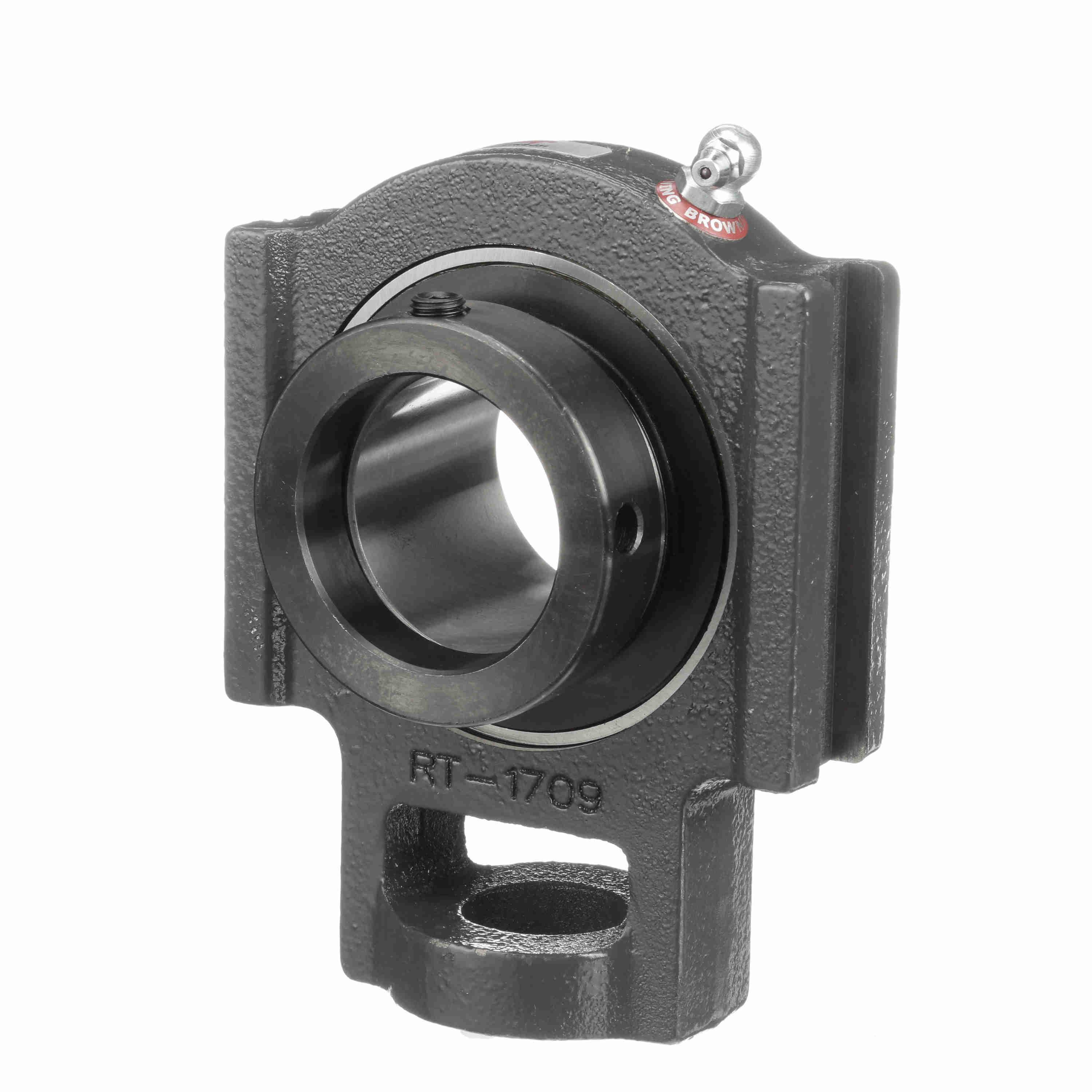

Browning® 767910 VTWE Non-Expansion Normal Duty Take-Up Ball Bearing Unit With Seal Flinger, 1-15/16 in Dia Bore, 5-29/32 in L x 2-1/8 in W x 4-1/2 in H, 7889 lb Dynamic/5216 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289528288
-
Manufacturer Part Number767910
-
CountryUSA
-
Load Capacity7889 lb Dynamic/5216 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeNon-Expansion Normal Duty
-
Height4-1/2 in
-
Width2-1/8 in
-
SeriesVTWE
-
Bearing MaterialSteel
-
Length5-29/32 in
-
Bore Diameter1-15/16 in
-
Suitable For Use With18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frames
- Nylon retainer
- Wide slot
- Zone hardened inner race
- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVTWE-231
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
