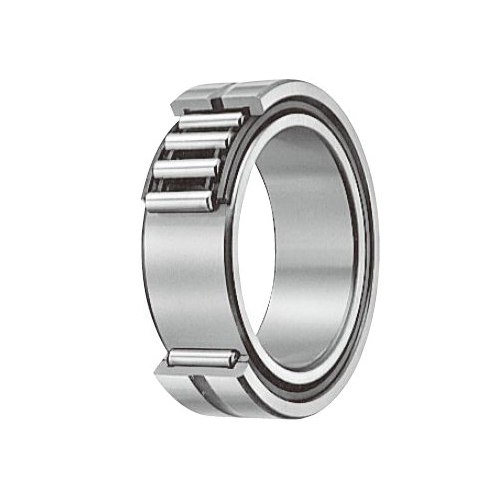

IKO TAFI203216 Metric Series Caged Light Duty Machined Needle Roller Bearing With Inner Ring, 20 mm Dia Bore, 32 mm OD, 16 mm W, 15300 N Dynamic/22500 N Static Load
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
-
BrandIKO
-
Manufacturer Part NumberTAFI203216
-
CountryUSA
-
Load Capacity15300 N Dynamic/22500 N Static
-
Maximum Speed17000 rpm
-
TypeCaged Light Duty Machined
-
Width16 mm
-
SeriesTAFI Metric Series
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter32 mm
-
Bore Diameter20 mm
- Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
- Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
- Without oil hole
-
UNSPSC31171512
-
