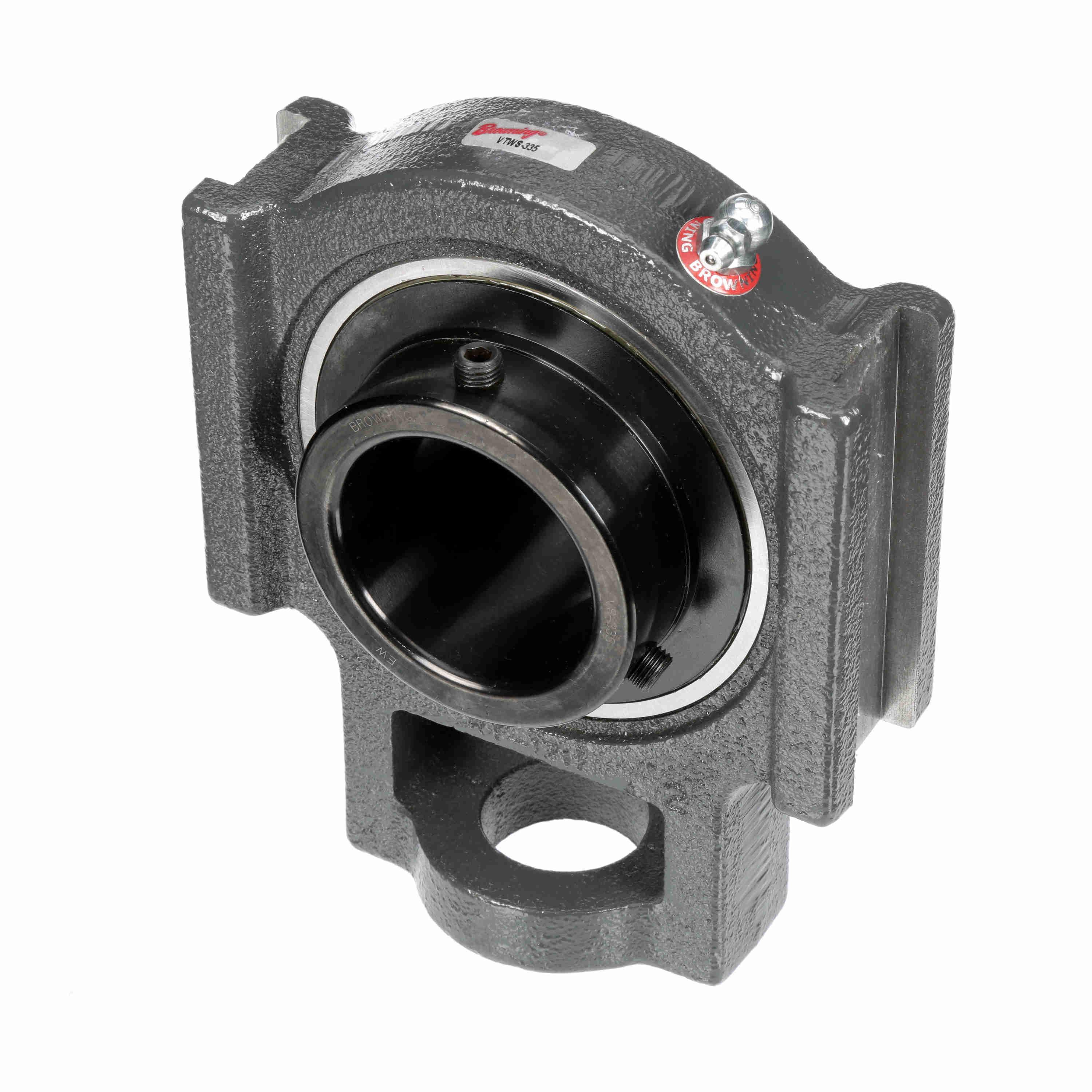

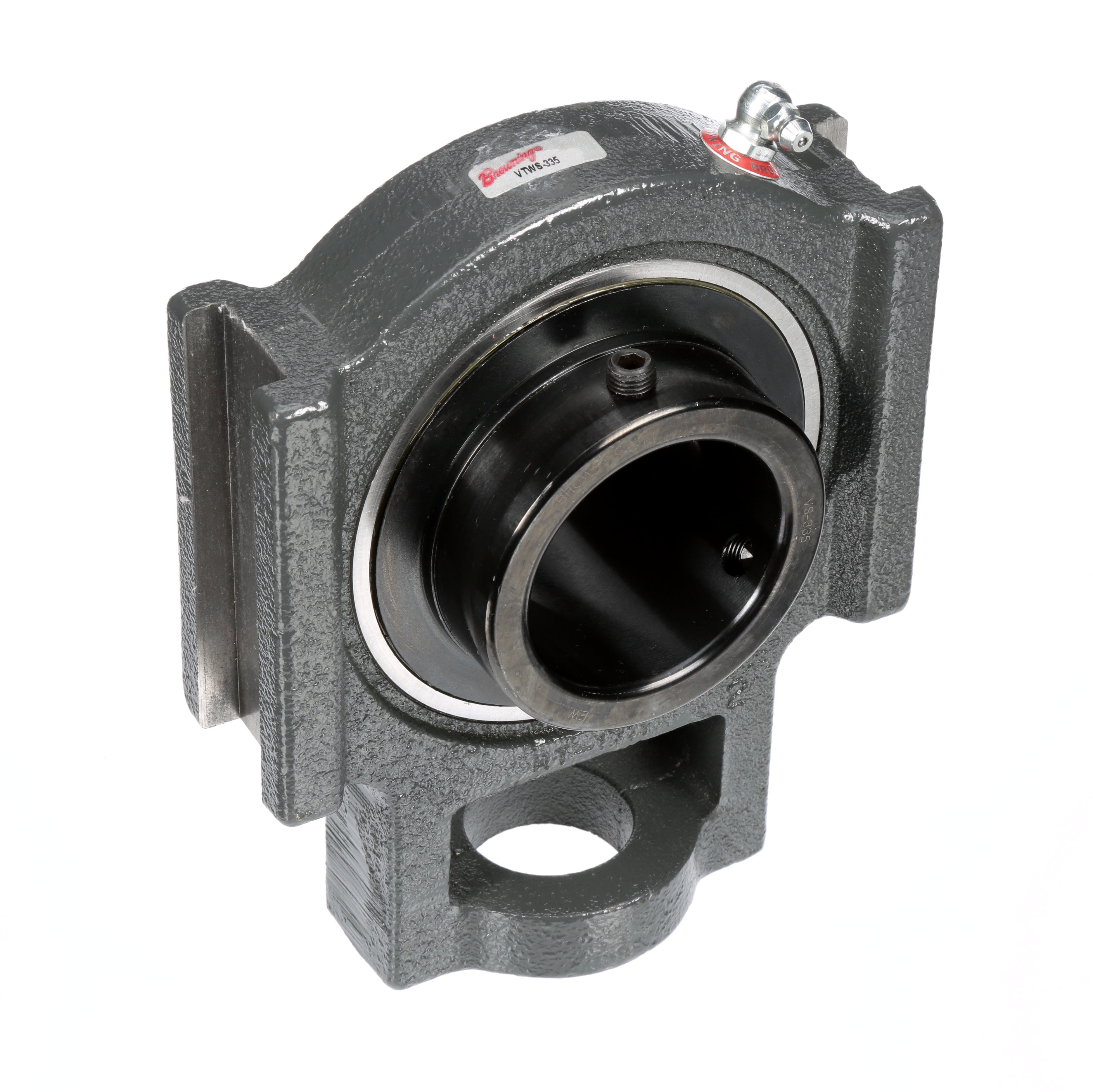

Browning® 767512 VTWS Medium Duty Take-Up Ball Bearing Unit With Seal Flinger, 2-3/16 in Dia Bore, 7-1/4 in L x 2-1/2 in W x 5-3/4 in H, 11789 lb Dynamic/8150 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289533909
-
Manufacturer Part Number767512
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeMedium Duty
-
Height5-3/4 in
-
Width2-1/2 in
-
SeriesVTWS
-
Bearing MaterialSteel
-
Length7-1/4 in
-
Bore Diameter2-3/16 in
-
Suitable For Use With18SF39, 9SF39, 12SF39 Frames
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Zone hardened inner race
- Powder coat epoxy cast iron housing
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVTWS-335
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
