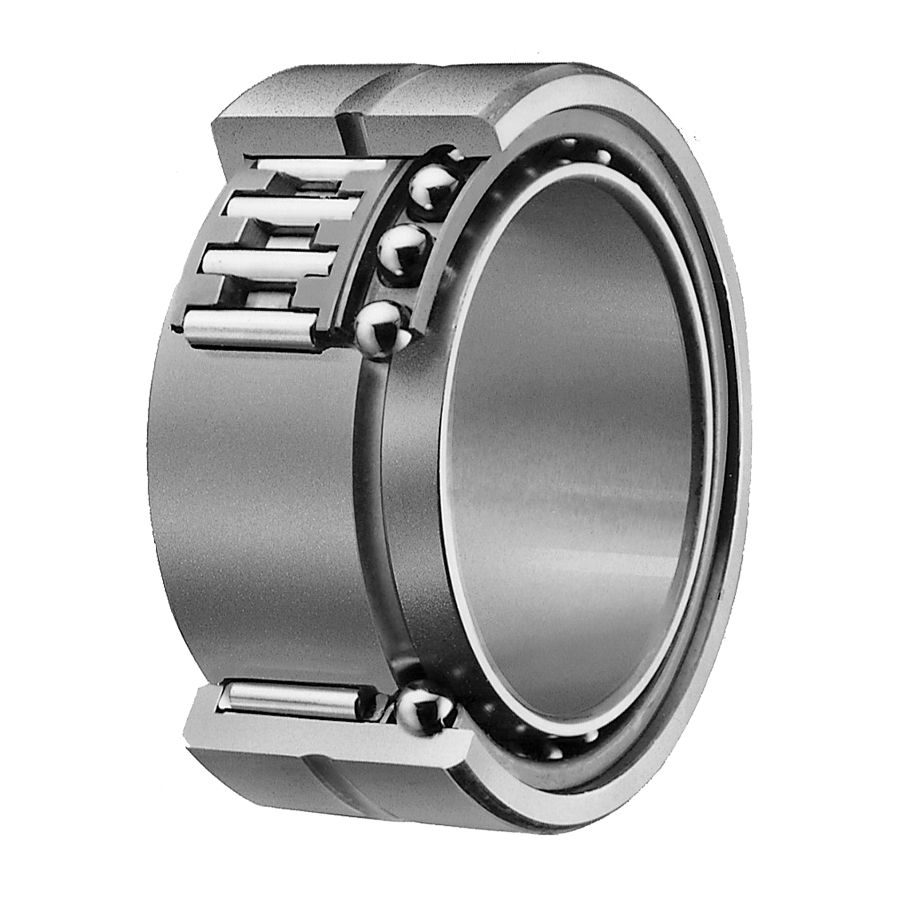

IKO NATA5908 Combined Needle Roller Bearing With Angular Contact Ball Bearing, 40 mm Dia Bore, 62 mm OD, 30 mm W, 30600 N Radial Dynamic/5350 N Axial Dynamic/60400 N Radial Static/11800 N Axial Static Load
IKO manufactures an economical series of Combined Needle Roller Bearings, comprised of both radial and thrust bearings. Caged needle roller bearings act as radial bearings, while thrust ball or roller bearings serve as thrust bearings. This series is available in four styles, including designs that incorporate thrust ball bearings, thrust roller bearings, angular contact ball bearings or three-point contact ball bearings. Applications include machine tools, textile equipment and industrial machinery. Needle roller bearings with angular contact ball bearings are designed to withstand heavy radial loads and unidirectional axial loads at the same time.
-
BrandIKO
-
Manufacturer Part NumberNATA5908
-
CountryUSA
-
Load Capacity30600 N Radial Dynamic/5350 N Axial Dynamic/60400 N Radial Static/11800 N Axial Static
-
Maximum Speed8500 rpm
-
Bore Diameter40 mm
- When the axial load exceeds 25% of the radial load, the radial load will be induced onto the angular contact ball bearing and the bearing life will be affected
- Therefore, the relationship between the two loads must be carefully considered
-
UNSPSC31171512
-
