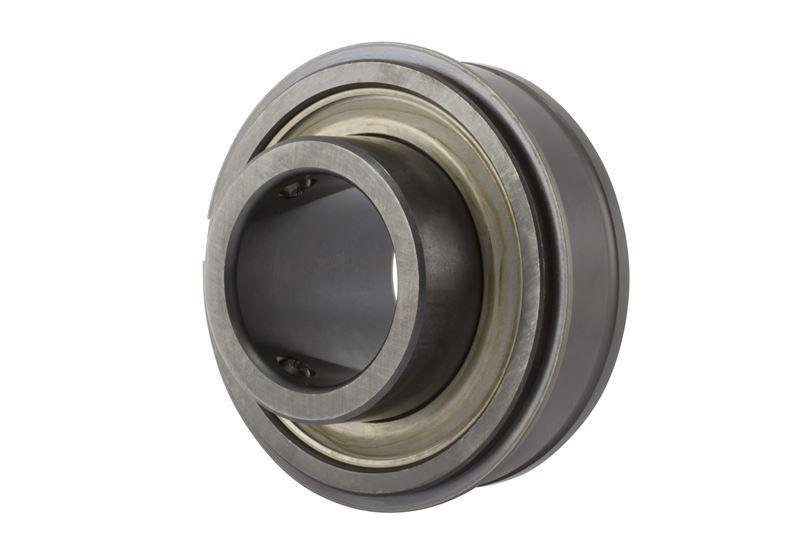

RBC Bearings 1-1/4"-ID FL/OD INSERT BEARINGS RBC ER-20
NiceĀ® ER20 ER Series Non-Fill Slot Precision Deep Groove Ball Bearing With Extended Inner Ring, 1-1/4 in Dia Bore, 2.835 in OD, 1 Rows, 1-11/16 in W, 5755 lb Load
-
BrandNiceĀ®
-
UPC637400390723
-
Manufacturer Part NumberER20
-
CountryUSA
-
Load Capacity5755 lb
-
Cage MaterialNylon
-
Temperature Rating300 deg F
-
FinishBlack Oxide
-
Maximum Speed5000 rpm
-
Closure TypeDouble Seal
-
TypeNon-Fill Slot
-
Width1-11/16 in
-
SeriesER Series
-
Number of Rows1
-
Bearing Material52100 Steel
-
Outside Diameter2.835 in
-
Bore Diameter1-1/4 in
- Exclusive heavy duty DL seal
- Two lubrication holes allow for regreasing
- Two knurled cup point set screws offer excellent resistance to loosening under vibratory conditions
- Fully ground, SAE 52100 chrome alloy steel races
- Black oxide finish provides added corrosion resistance
- Permanently sealed and prelubricated for long life
- Pregreased with metered Shell Alvania #2 grease
- 3450 lb dynamic/5755 lb static
-
UNSPSC31171504
-
Package Description1/PK
-
Standards/ApprovalsABEC-1|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
