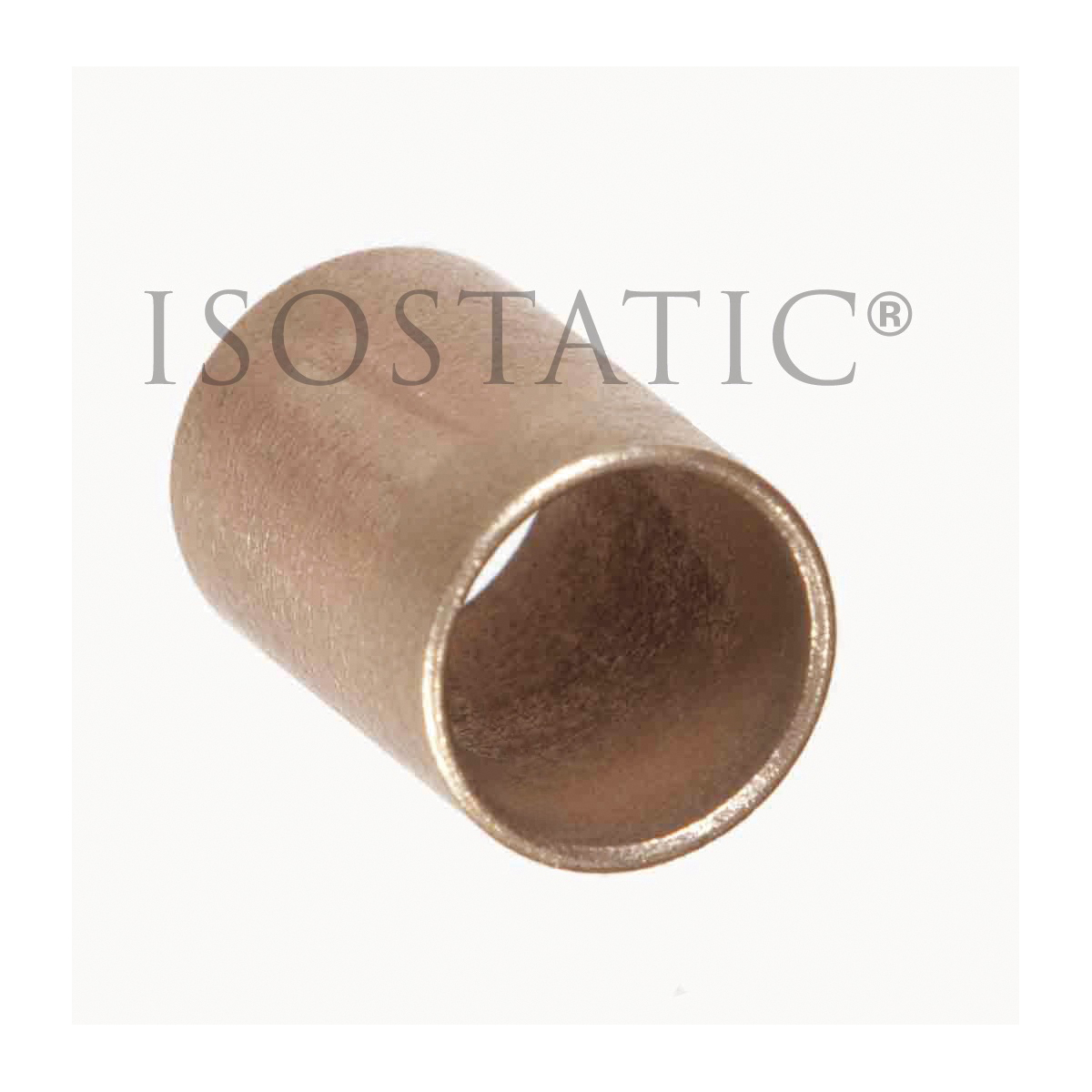

ISOSTATIC™ Oilube® 401213 Round Bore Sleeve Bearing, 5/8 in Dia Bore, 1 in OD, 1 in W
ISOSTATIC™ Oilube® 401213 Round Bore Sleeve Bearing, 5/8 in Dia Bore, 1 in OD, 1 in W
-
BrandISOSTATIC™
-
UPC846802045081
-
Manufacturer Part Number401213
-
CountryUSA
-
Temperature Rating10 to 175 deg F
-
Maximum PV Rating50000 psi/sq-ft/min
-
Maximum Pressure2000 psi
-
Maximum Velocity1200 sfpm
-
TypeRound Bore
-
Width1 in
-
Bearing MaterialSAE 841 Powdered Metal/Oil Impregnated Bronze
-
Outside Diameter1 in
-
Bore Diameter5/8 in
- Standard stock products
- SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
- Powdered metal bronze providing interconnected reservoirs for oil
- Vacuum impregnated with SAE 30 oil during the manufacturing process
- Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
- Ideal for heavy loads at moderate speeds or light loads at high speeds
-
Alternative Part NumberSS-2032-16
-
UNSPSC31171509
-
Package Description1/PK
-
Standards/ApprovalsROHS|REACH|DFARS Compliant|PROP65: This product can expose you to chemicals including polybrominated biphenyls which is known to the state of California to cause cancer and cadmium which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov
-
Specification Sheet
-
Catalog
