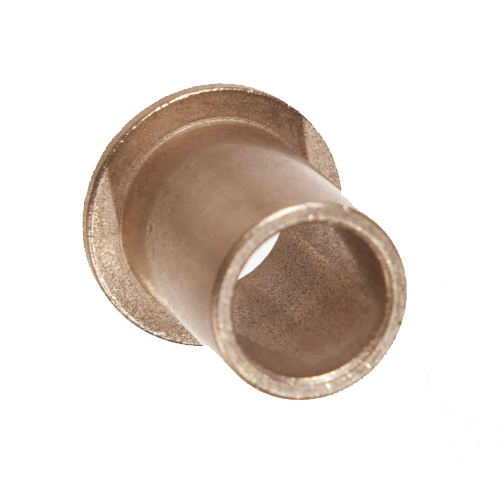

ISOSTATIC™ Oilube® 402087 Flange Bearing, 0.753 in Dia Bore, 0.94 in OD, 1-1/2 in W, 1-1/4 in Dia Flange
ISOSTATIC™ Oilube® 402087 Flange Bearing, 0.753 in Dia Bore, 0.94 in OD, 1-1/2 in W, 1-1/4 in Dia Flange
-
BrandISOSTATIC™
-
Manufacturer Part Number402087
-
CountryUSA
-
Temperature Rating220 deg F
-
Flange Diameter1-1/4 in
-
Maximum PV Rating50000 psi/sq-ft/min
-
Maximum Pressure2000 psi
-
Maximum Velocity1200 sfpm
-
Width1-1/2 in
-
Bearing MaterialSAE 841 Powdered Metal/Oil Impregnated Bronze
-
Outside Diameter0.94 in
-
Bore Diameter0.753 in
- SAE 841-copper (87 to 90%), tin (8 to 9%), carbon and other elements
- Powdered metal bronze providing interconnected reservoirs for oil
- Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest
- Effective in temperature range of 10 to 175 deg F with standard oil
- Standard tolerances vary by size
-
Alternative Part NumberSF-2430-24
-
UNSPSC31171501
-
Package Description1/PK
-
Standards/ApprovalsConflict Minerals Compliant|DFARS Compliant|REACH Compliant|RoHS Compliant
-
Catalog
-
Specification Sheet
