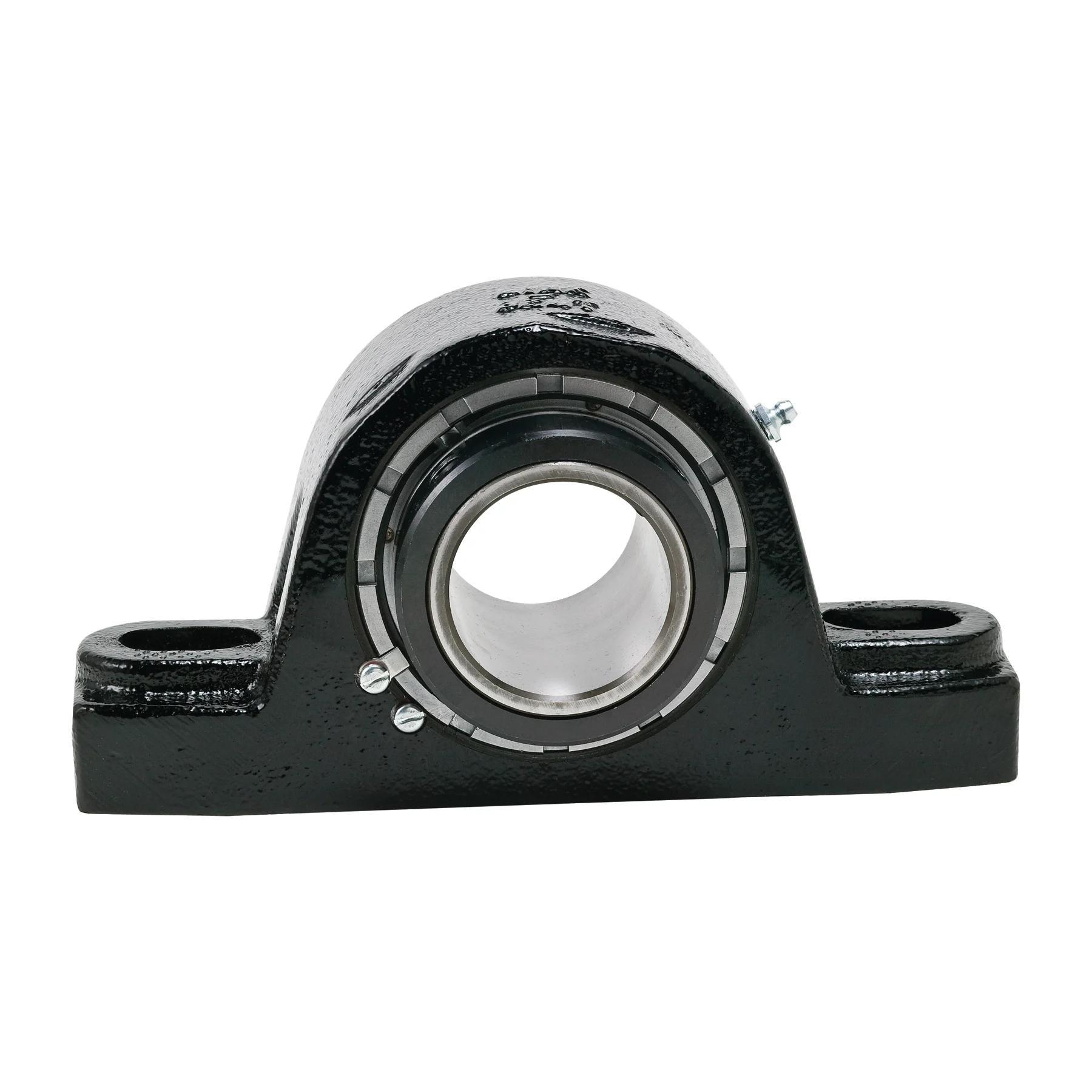

Rexnord® 10437287 2000 Normal Duty Pillow Block Spherical Roller Bearing, 1-15/16 in Dia Bore, 6-1/16 to 7-1/4 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8-7/8 in OAL x 4-9/16 in OAH
Rex® 10437287 2000 Normal Duty Pillow Block Spherical Roller Bearing, 1-15/16 in Dia Bore, 6-1/16 to 7-1/4 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8-7/8 in OAL x 4-9/16 in OAH
-
BrandRexnord®
-
UPC698210677930
-
Manufacturer Part Number10437287
-
CountryUSA|Canada
-
Load Capacity28890 lb Dynamic/33200 lb Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed4050 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeClearance
-
Series2000
-
Base Width2-1/2 in
-
Base to Bore Centerline2-1/4 in
-
Bolt Center-to-Center Length6-1/16 to 7-1/4 in
-
Bore Diameter1-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4-9/16 in
-
Overall Length8-7/8 in
-
Overall Width3-1/8 in
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Simplest installation
- Most economical
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Field interchangeable seals
- Type E interchange
-
Alternative Part NumberZEP2115
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
