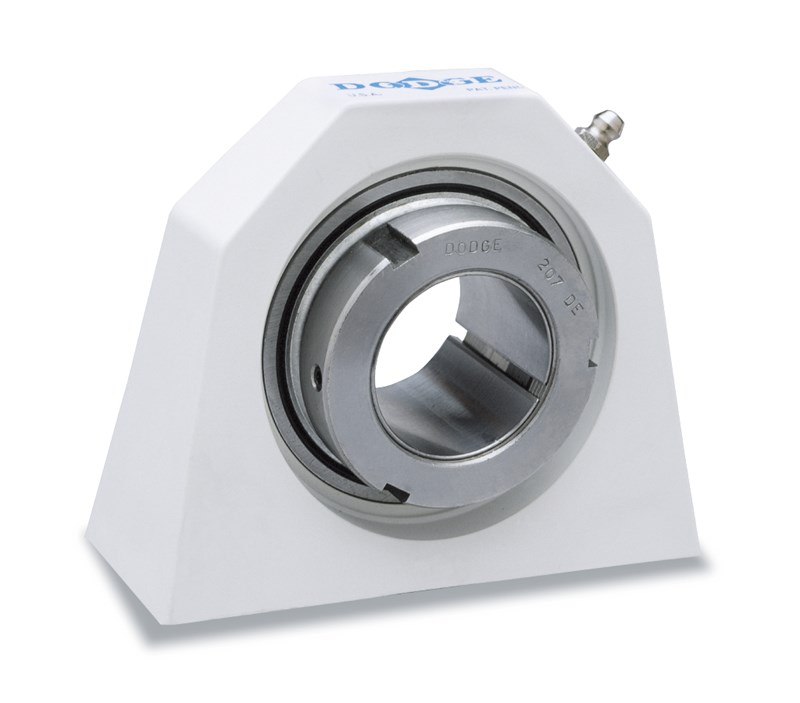

Dodge® Ultra Kleen™ 136705 205 Normal Duty Pillow Block Ball Bearing Unit With Insert, 1 in Dia Bore, 2 in L Bolt Center-to-Center, 1.44 in Base to Bore Centerline, 3-1/4 in OAL x 1.32 in OAH
Dodge® Ultra Kleen™ mounted ball bearings are ideal for washdown applications. The stainless steel set screw (SC) insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant.
-
BrandDodge®
-
UPC782476476465
-
Manufacturer Part Number136705
-
CountryUSA
-
Load Capacity2674 lb Dynamic/1769 lb Static
-
Locking Device65 deg Set Screw
-
FinishUncoated
-
MaterialPolymer
-
Maximum Speed6000 rpm
-
TypeNormal Duty
-
Mounting TypeTapped Base
-
Seal TypeTriple Lip
-
Series205
-
Base Width1.49 in
-
Base to Bore Centerline1.44 in
-
Bolt Center-to-Center Length2 in
-
Bore Diameter1 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height1.32 in
-
Overall Length3-1/4 in
-
Overall Width1.34 in
- 65 deg setscrew locking system
- Wide inner ring design
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard™ triple lip seal features a rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease and insure grease retention in potential washout conditions
- H1 registered food grade lubricant
- Standard food grade lubrication
- Stainless steel insert
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101634607 |
| Motion Industries | 04203104 |
-
Alternative Part NumberTB-SCEZ-100-PSS
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
