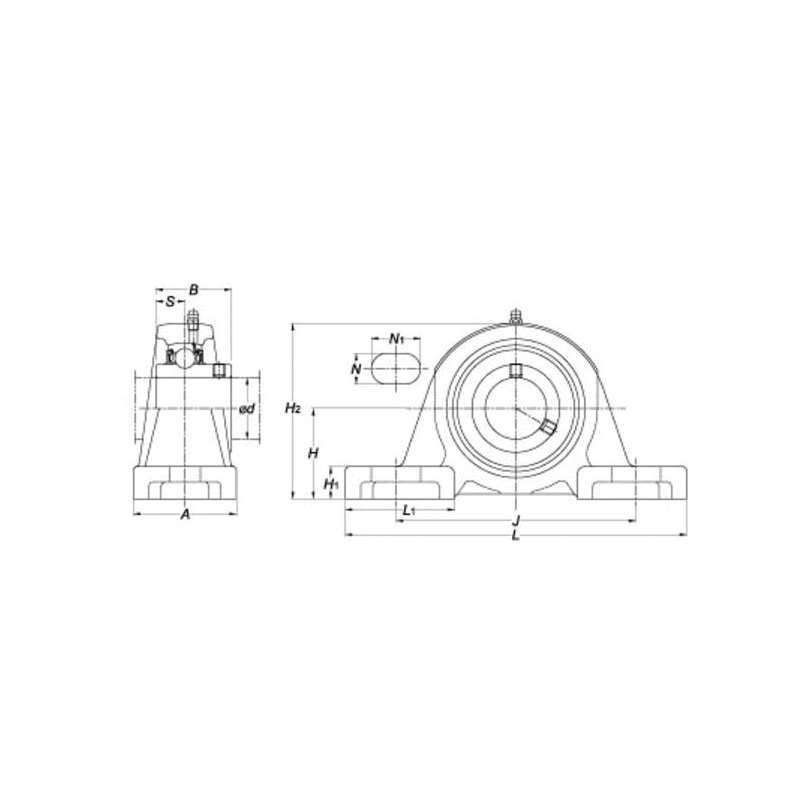

FYH® UCPX15-47 Pillow Block Unit, 2-15/16 in Dia Bore, 9 in L Bolt Center-to-Center
FYH® UCPX15-47 Pillow Block Unit, 2-15/16 in Dia Bore, 9 in L Bolt Center-to-Center
-
BrandFYH®
-
Manufacturer Part NumberUCPX15-47
-
CountryUSA
-
Load Capacity16358 lbf Dynamic/11925 lbf Static
-
Locking DeviceSet Screw
-
MaterialCast Iron
-
SeriesUCP
-
Bolt Center-to-Center Length9 in
-
Bore Diameter2-15/16 in
-
Bore TypeCylindrical
- PX15 housing
- UCX15-47 bearing
- Pillow block unit with a rigid cast iron housing and two specially designed set screws in the inner ring spaced at 120 deg for maximum holding power and reliability for a wide variety of applications and operating conditions
- 7/8 in bolt
- 13 in OAW
- 6-7/8 in OAH
- Basic Load Rating: 14.6 factor
- 3-1/2 in base depth
- 3-1/2 in center to base
- 1/2-20 UNF set screw size
- A-R1/8 grease fitting size
-
UNSPSC31171511
-
