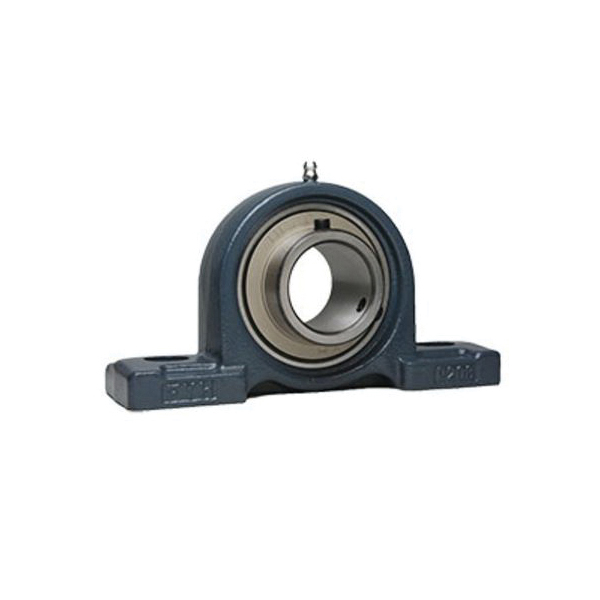

FYH® UCP206-20 Pillow Block Unit, 1-1/4 in Dia Bore, 4-3/4 in L Bolt Center-to-Center
FYH® UCP206-20 Pillow Block Unit, 1-1/4 in Dia Bore, 4-3/4 in L Bolt Center-to-Center
-
BrandFYH®
-
UPC808250109142
-
Manufacturer Part NumberUCP206-20
-
CountryUSA
-
Load Capacity4388 lbf Dynamic/2543 lbf Static
-
Locking DeviceSet Screw
-
MaterialCast Iron
-
SeriesUCP
-

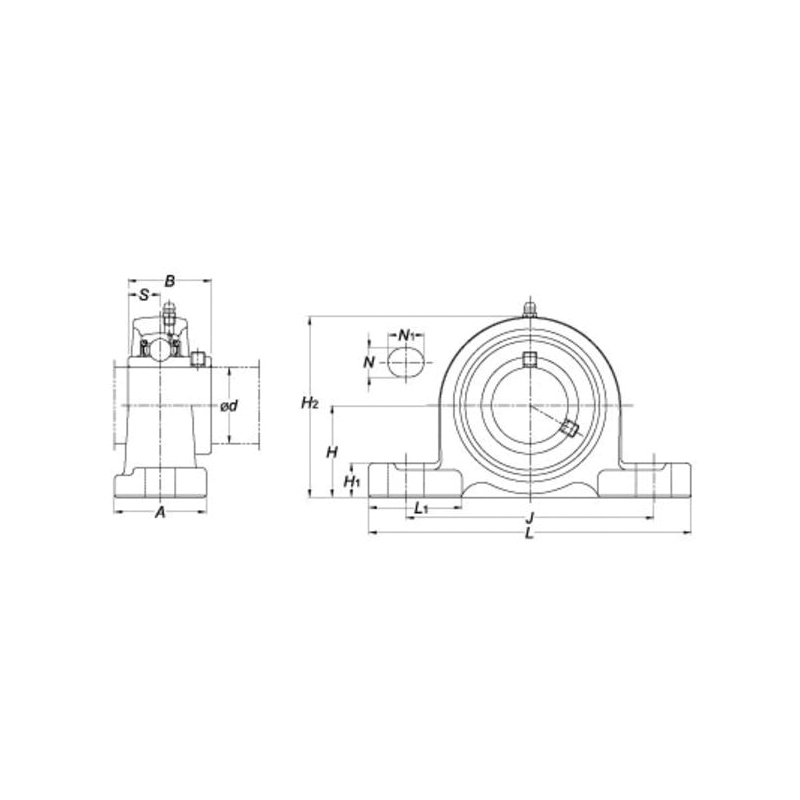

Bolt Center-to-Center Length4-3/4 in
-
Bore Diameter1-1/4 in
-
Bore TypeCylindrical
- P206 housing
- UC206-20 bearing
- Pillow block unit with a rigid cast iron housing and two specially designed set screws in the inner ring spaced at 120 deg for maximum holding power and reliability for a wide variety of applications and operating conditions
- 1/2 in bolt
- 6-1/2 in OAW
- 3-5/16 in OAH
- Basic Load Rating: 13.9 factor
- 1-7/8 in base depth
- 1-11/16 in center to base
- 1/4-28 UNF set screw size
- A-1/4-28 UNF grease fitting size
-
UNSPSC31171511
-
