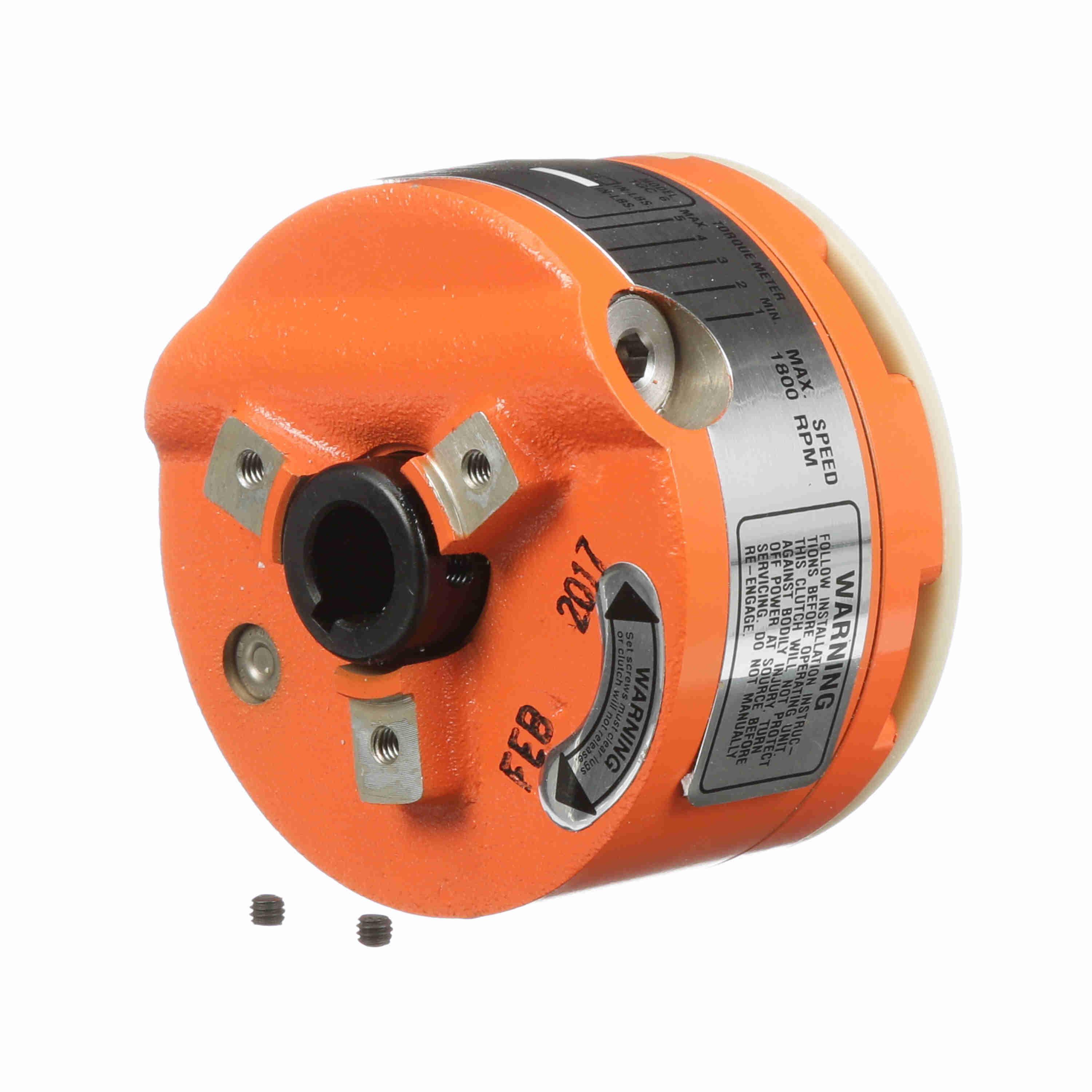

Browning® 3546991 TGC Cam Detent Mini Straight Bushing Overload Clutch, 1/2 in Dia Bore, 3.15 in OD, 23 to 56 in-lb Torque, 2.36 in OAL
The Browning® Torq/Gard® overload clutches are one of the most popular torque overload devices that power transmission solutions offers. A spring loaded cam follower seated in a single hub cam detent cause the hub and clutch to rotate together. Therefore, the clutch always resets in the same position if tripped, staying in phase. They can be turned in both directions by design. After tripping, the unit automatically resets when it returns to the set position. This is usually performed by jogging the machine after the jam or overload is cleared. Shaft bushings are used to accommodate a standard maximum bore unit to the application shaft requirement. Torque capacity up to 8000 in-lb and speed ranges from 350 to 1800 rpm.
-
BrandBrowning®
-
UPC662289486427
-
Manufacturer Part Number3546991
-
CountryUSA
-
FinishOrange
-
Torque Rating23 to 56 in-lb
-
TypeCam Detent Mini Straight Bushing
-
SeriesTGC
-
Outside Diameter3.15 in
-
Bore Diameter1/2 in
-
Overall Length2.36 in
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Durable, bright orange enamel finish for high visibility, closed grained aluminum housing,alloy steel forged cam, heavy duty needle bearings
- Disengages at the pre-set torque limit
- Precise overload protection with an elegant yet rugged cam-in detent system
- Detector plates, coupling options and other accessories enhance design flexibility
- Sealed for life gasket and O-ring sealed body, packed with high-performance, moisture resistant, lithium based grease for outdoor and wash-down application
- Browning Torqe Gard overload devices are the most accurate Torque Overload Device offered
- Durable, bright orange enamel finish for high visibility, closed grained aluminum housing,alloy steel forged cam, heavy duty needle bearings
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10 Percent with max torque range 5270 ft/lbs
- Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
-
Alternative Part NumberTGC6
-
UNSPSC24101600
-
Package DescriptionEACH
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
-
Warranty Information
