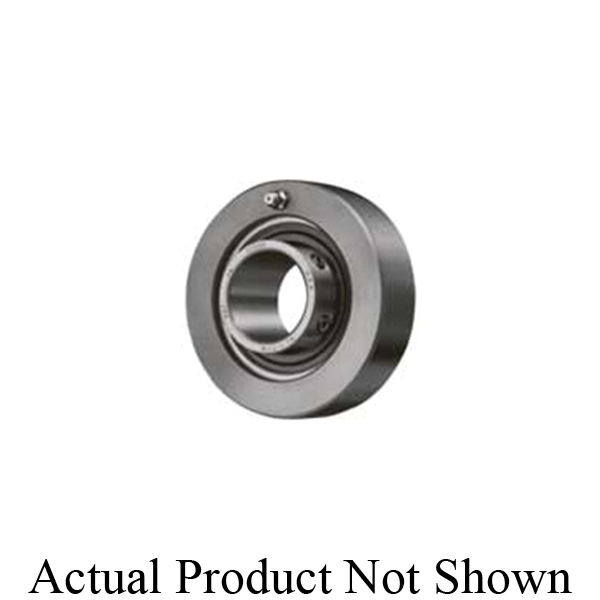

CYL-SC-104 Dodge® 124251 207 Series Non-Expansion Normal Duty Cylindrical Ball Bearing Cartridge Unit, 1-1/4 in Dia Bore, 3-7/8 in OD, 1.71 in W, Steel Bearing
A setscrew shaft attachment method is the most common means of securing a mounted ball bearing to a shaft and also the easiest to install. The Dodge® mounted ball bearing offering is engineered with a 65 deg setscrew angle. This ensures the maximum grip onto the shaft, especially when using premium cup point set screws with the high quality manufacturing of the Dodge® insert.
-
BrandDodge®
-
UPC782475114948
-
Manufacturer Part Number124251
-
CountryUSA
-
Load Capacity5759 lb Dynamic/3461 lb Static
-
Cage MaterialFiberglass Reinforced Nylon
-
FinishPowder Coated
-
Maximum Speed5500 rpm
-
TypeNon-Expansion Normal Duty
-
Width1.71 in
-
Series207
-
Bearing MaterialSteel
-
Outside Diameter3-7/8 in
-
Bore Diameter1-1/4 in
- 65 deg setscrew locking system
- Precision hardened and honed inner and outer rings
- Grade 10 balls
- Wide inner ring design
- DualGuard™ single lip seal with rubberized flinger is standard
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00568135 |
-
Alternative Part NumberCYL-SC-104
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Owners/User Manual
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
-
Warranty Information
