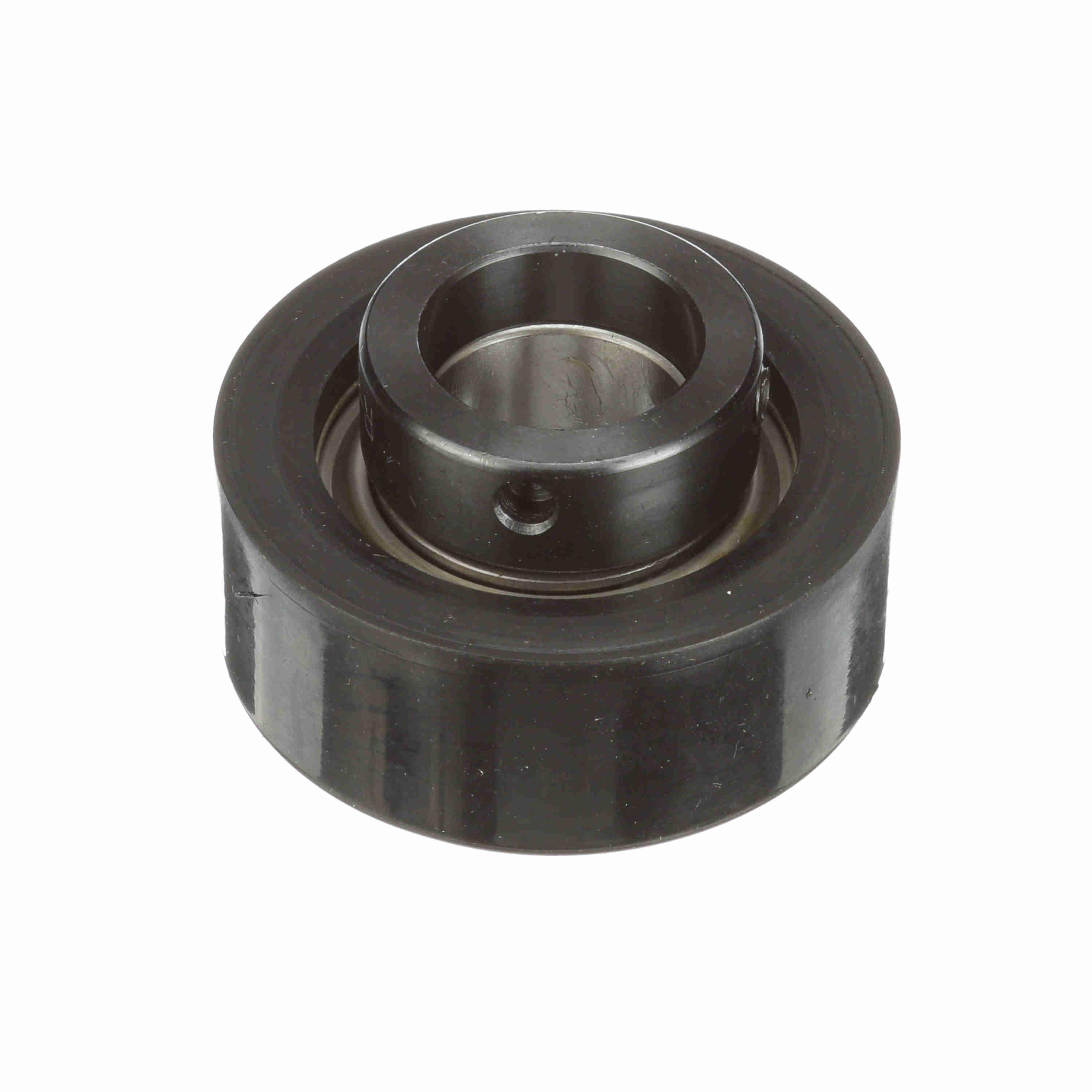

Browning® 766558 RUBRE 100 1-Piece Light Duty Non-Expansion Straight Bore Cylindrical Cartridge Ball Bearing, 1 in Dia Bore, 2.531 in OD, 1-17/64 in W, 52100 Steel Bearing
Browning® 766558 RUBRE 100 1-Piece Light Duty Non-Expansion Straight Bore Cylindrical Cartridge Ball Bearing, 1 in Dia Bore, 2.531 in OD, 1-17/64 in W, 52100 Steel Bearing
-
BrandBrowning®
-
UPC662460342979
-
Manufacturer Part Number766558
-
CountryUSA
-
Load Capacity300 lb Static/2801 lb Dynamic
-
Cage MaterialRubber
-
Temperature Rating200 deg F
-
FinishUncoated
-
Maximum Speed3500 rpm
-
Type1-Piece Light Duty Non-Expansion Straight Bore
-
Width1-17/64 in
-
SeriesRUBRE 100
-
Bearing Material52100 Steel
-
Outside Diameter2.531 in
-
Bore Diameter1 in
-
Alternative Part NumberRUBRE-116
-
UNSPSC31171547
-
Package DescriptionEACH
-
WarrantyLimited
-
