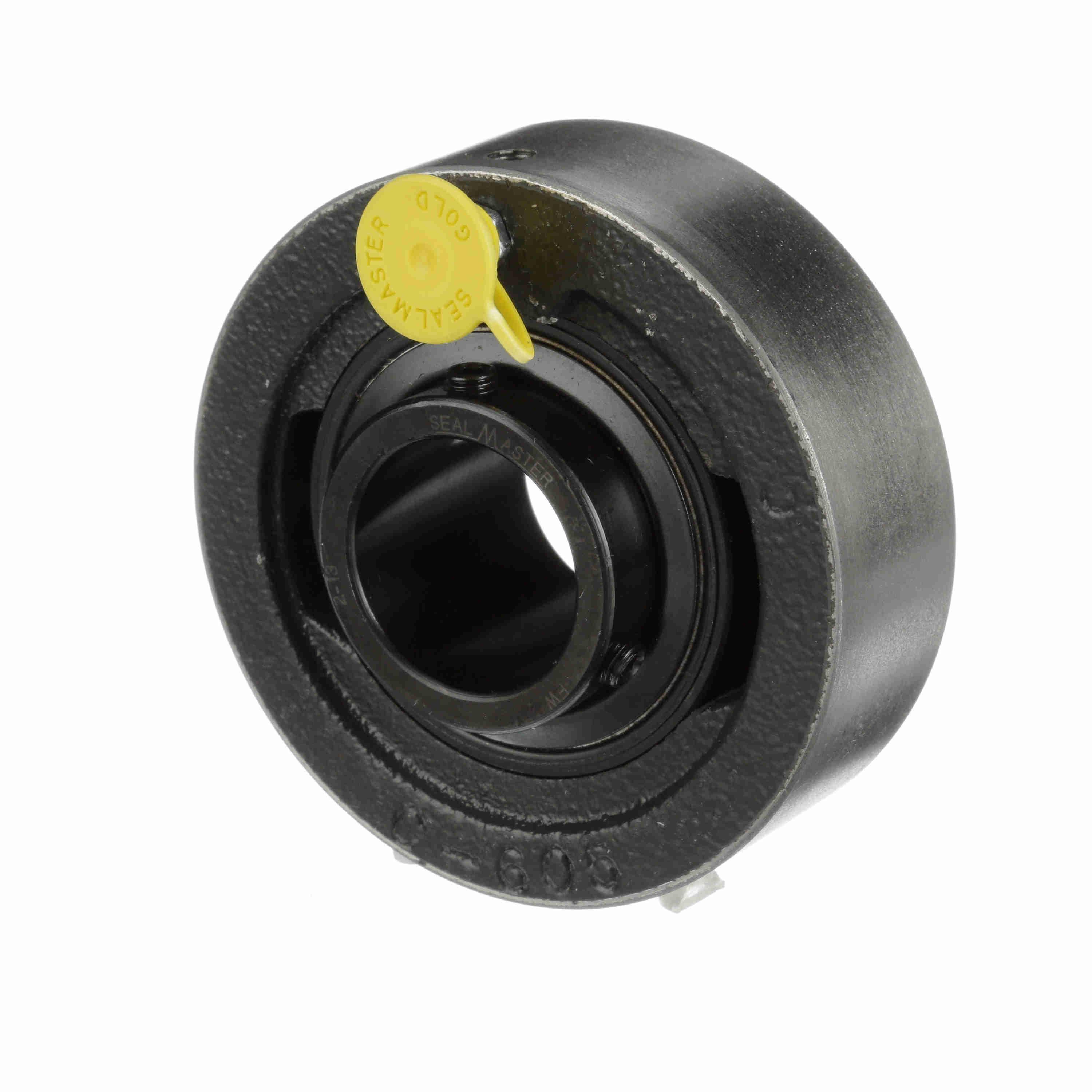

Sealmaster® 700322 SC Series 1-Piece Non-Expansion Standard Duty Straight Bore Cylindrical Cartridge Ball Bearing, 1.188 in Dia Bore, 3-1/2 in OD, 1.094 in W, 52100 Steel Bearing
Sealmaster® 700322 SC Series 1-Piece Non-Expansion Standard Duty Straight Bore Cylindrical Cartridge Ball Bearing, 1.188 in Dia Bore, 3-1/2 in OD, 1.094 in W, 52100 Steel Bearing
-
BrandSealmaster®
-
UPC662461002421
-
Manufacturer Part Number700322
-
CountryUSA
-
Load Capacity2567 lb Static/4381 lb Dynamic
-
Cage MaterialCast Iron
-
Temperature Rating220 deg F
-
FinishBlack Oxide
-
Maximum Speed5450 rpm
-
Type1-Piece Non-Expansion Standard Duty Straight Bore
-
Width1.094 in
-
SeriesSC Series
-
Bearing Material52100 Steel
-
Outside Diameter3-1/2 in
-
Bore Diameter1.188 in
- Epoxy powder coated cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing set screw locking with diamond faceted set screws
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster® exclusive lock and pin dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSC-19
-
UNSPSC31171547
-
Package DescriptionEACH
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
