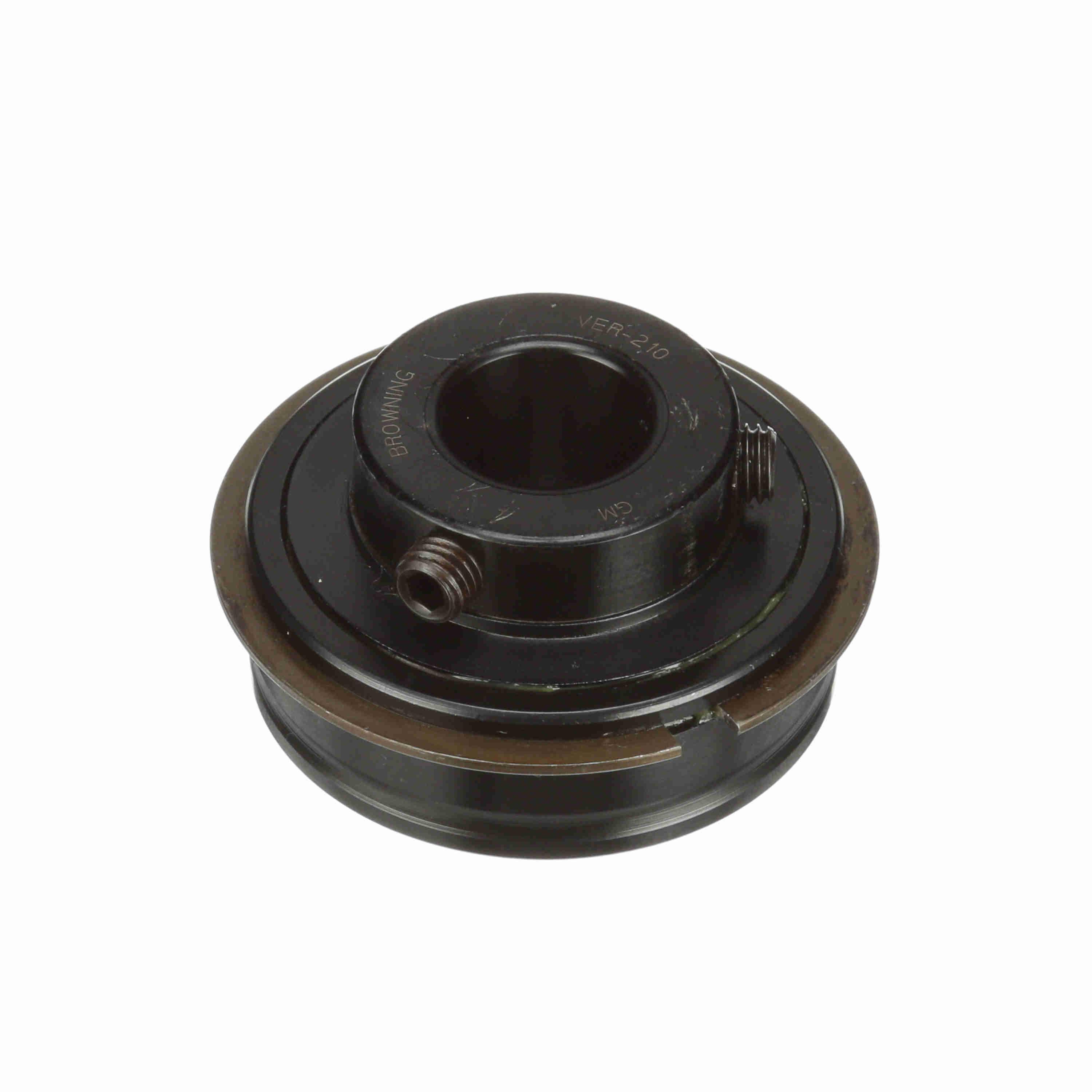

Browning® 765820 VER 200 Standard Duty Straight Bore Ball Bearing Insert With Seal Flinger and Snap Ring, 5/8 in Dia Bore, 2.063 in OD, 1 Rows, 1.219 in W, 2108 lb Dynamic/1117 lb Static Load
Browning® VER bearings feature black oxide treated inner and outer rings and extended inner race bearing with ball riding nylon retainer. Shaft lock is achieved by 120 deg spaced diamond faceted setscrew locking. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289868292
-
Manufacturer Part Number765820
-
CountryUSA
-
Load Capacity2108 lb Dynamic/1117 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed6500 rpm
-
Closure TypeDouble Seal
-
TypeStandard Duty Straight Bore
-
Seal MaterialRubber
-
Width1.219 in
-
SeriesVER 200
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter2.063 in
-
Bore Diameter5/8 in
- Single setscrew locking
- Single lip contact seal
- Zone hardened inner race
- Browning® VER bearings have the part number laser marked on the inner ring for easy verification of the part number during installation and for replacement
- Cylindrical outer diameter
- Relube through groove in outer diameter
-
Alternative Part NumberVER-210
-
UNSPSC31171504
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
