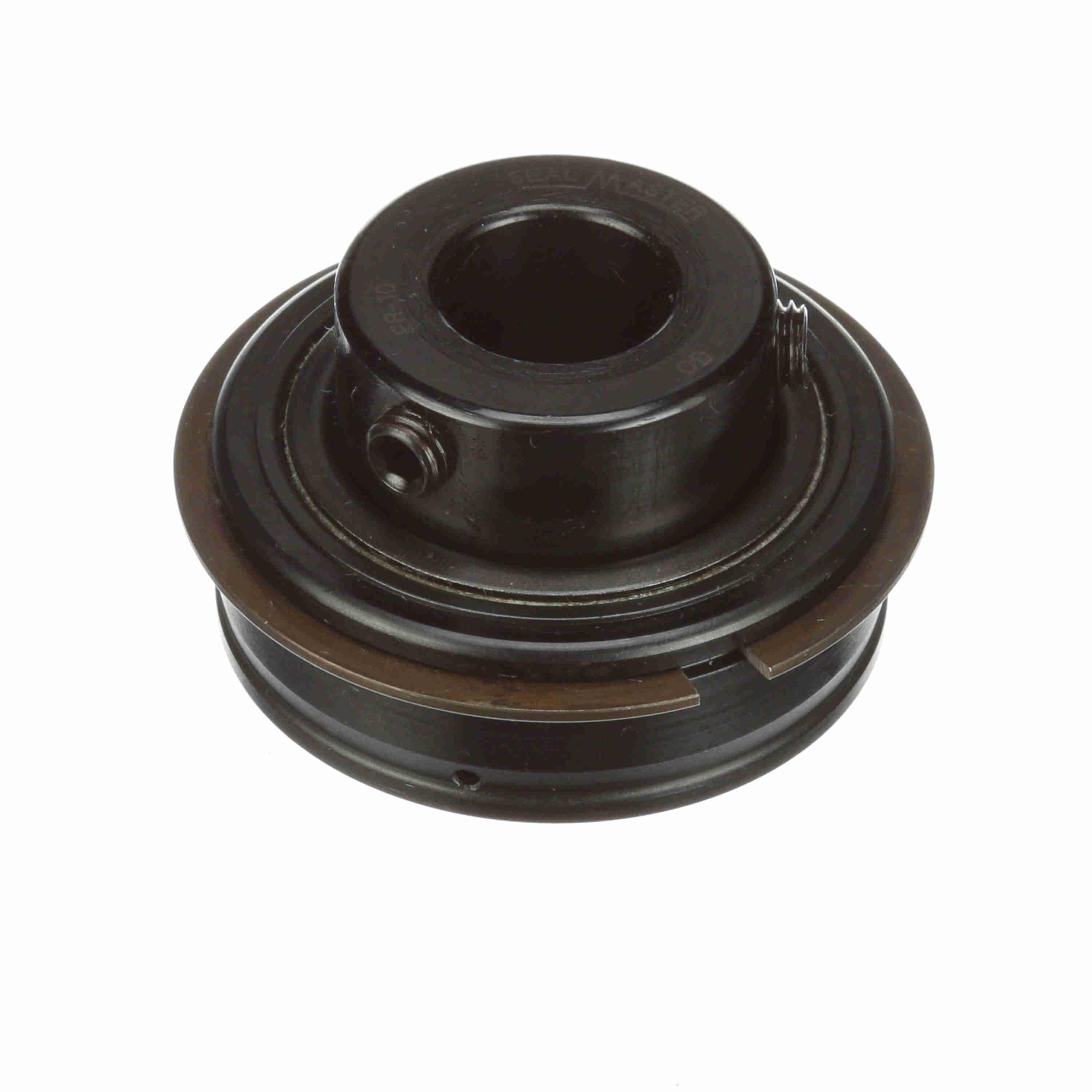

Sealmaster 5/8"-ID FLAT/OD INSERT BEARINGS SEA ER-10

0 Ratings
$79.34
In Stock
SKU: SEAER10
noimage_new

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

In Stock
HCI of Jackson: 4
HCI of Dyersburg: 1
HCI of Humboldt: 1
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Sealmaster®
  • UPC
    662461008492
  • Manufacturer Part Number
    701051
  • Country
    USA
Specification
  • Load Capacity
    2611 lb Dynamic/1444 lb Static
  • Cage Material
    Brass
  • Temperature Rating
    -20 to 220 deg F
  • Finish
    Black Oxide Coated
  • Maximum Speed
    7300 rpm
  • Closure Type
    Double Seal
  • Type
    Non-Expansion Standard Duty Straight Bore
  • Seal Material
    Felt
  • Width
    1-7/32 in
  • Series
    ER Series
  • Number of Rows
    1
  • Bearing Material
    Steel
  • Outside Diameter
    1.8504 in
  • Bore Diameter
    5/8 in
Features
  • ER style cylindrical OD bearing with snap and with black oxided bearing rings
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Felt labyrinth seal and flinger for dry and dusty environment
  • Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
  • Lithium complex NLGI #2 grease with an EP additive
  • ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
Additional Information
  • Alternative Part Number
    ER-10
  • UNSPSC
    31171537
  • Package Description
    EACH
Attachments
Reviews

There are yet no reviews for this product.
