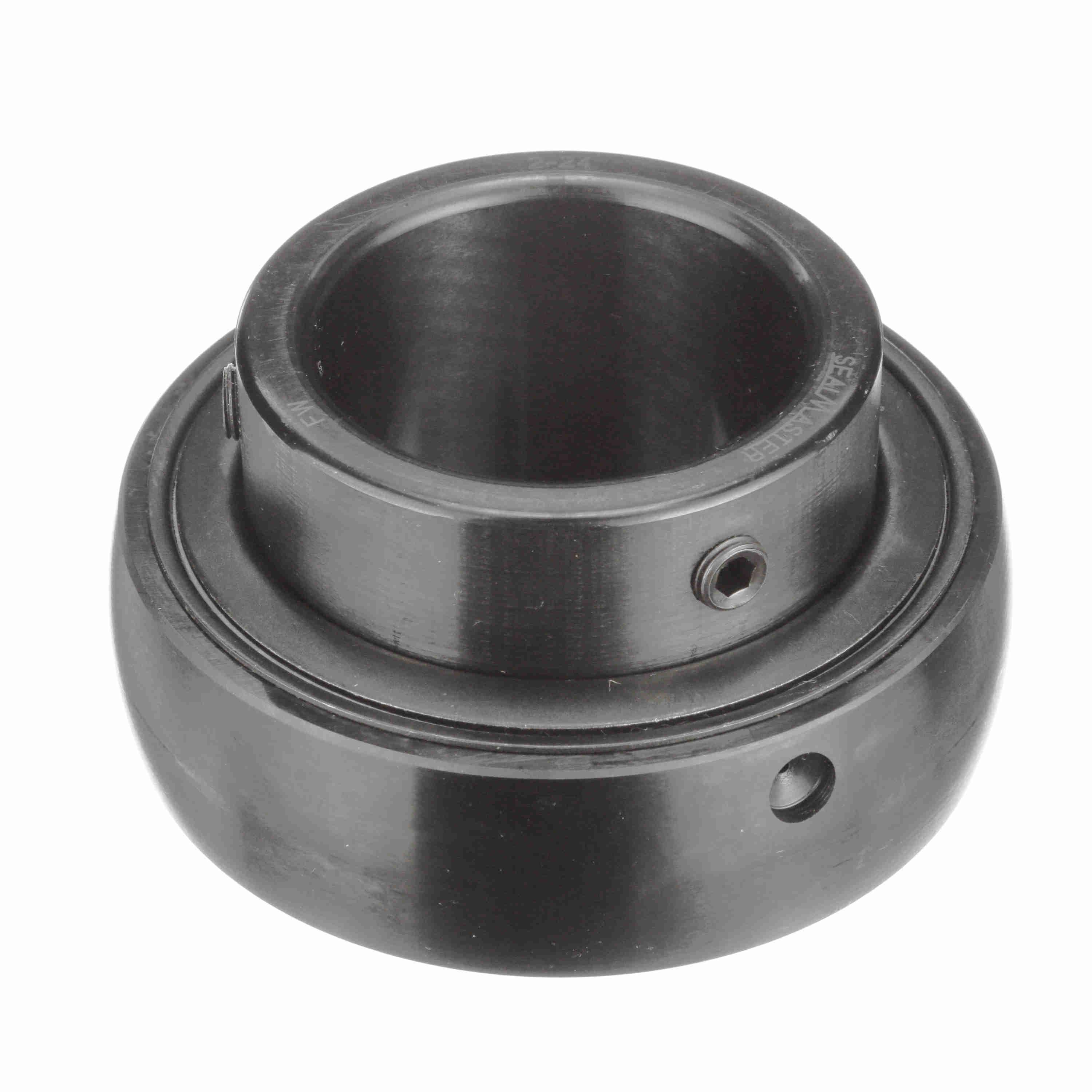

Sealmaster® 700040 Non-Expansion Standard-Duty Straight Bore Ball Bearing Insert, 2-1/4 in Dia Bore, 4.3307 in OD, 2-9/16 in W, 11789 lb Dynamic/8150 lb Static Load
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461000380
-
Manufacturer Part Number700040
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3000 rpm
-
Closure TypeDouble Seal
-
TypeNon-Expansion Standard-Duty Straight Bore
-
Seal MaterialFelt
-
Width2-9/16 in
-
Bearing MaterialSteel
-
Outside Diameter4.3307 in
-
Bore Diameter2-1/4 in
- Wide outer ring
- Lock pin and dimple system
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
-
Alternative Part Number2-24
-
UNSPSC31171537
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
