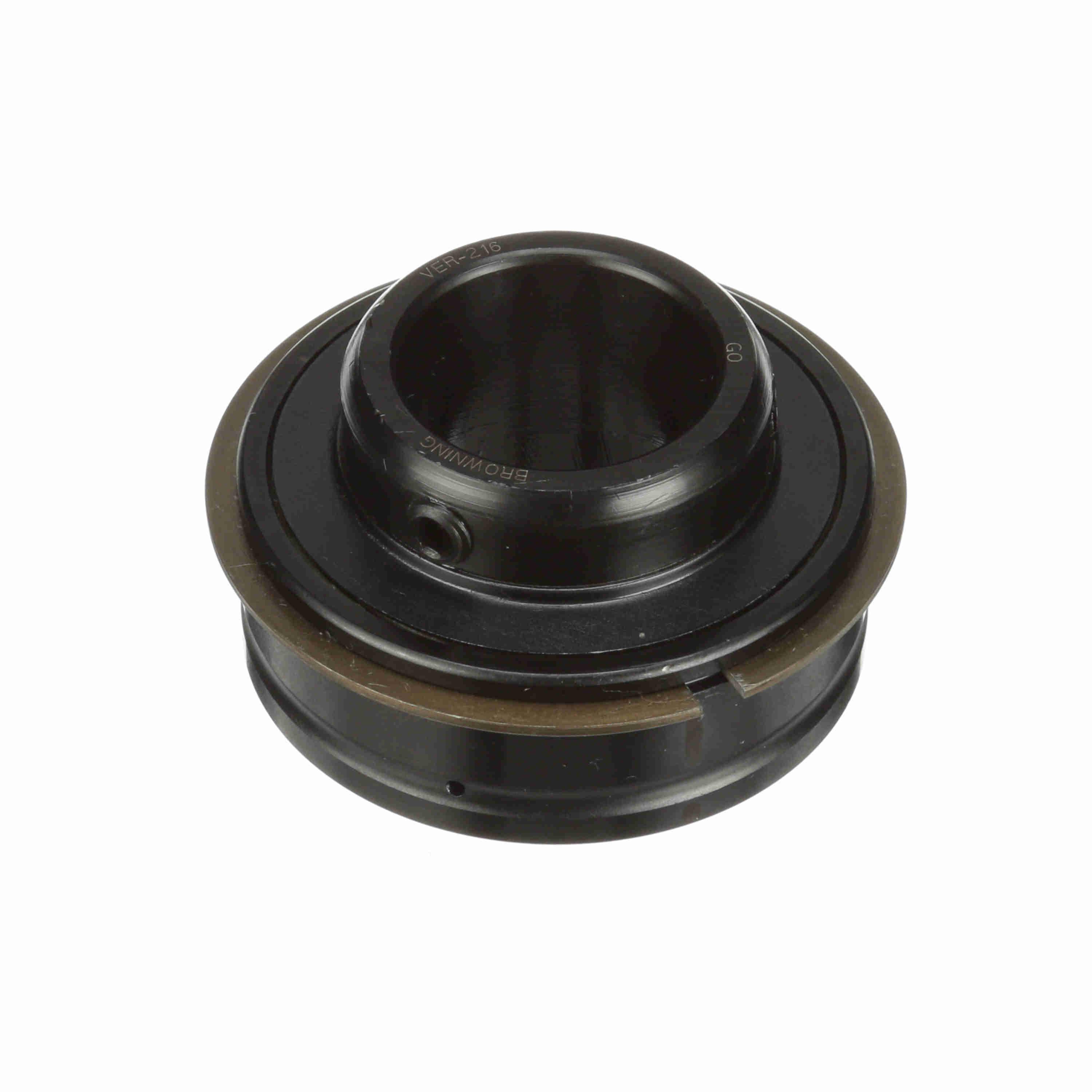

Browning® 765243 VER200 Standard-Duty Straight Bore Ball Bearing Insert With Snap Ring, 1 in Dia Bore, 2.0472 in OD, 1 Rows, 1-3/8 in W, 2801 lb Dynamic/1651 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289859634
-
Manufacturer Part Number765243
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed5500 rpm
-
Closure TypeDouble Seal
-
TypeStandard-Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width1-3/8 in
-
SeriesVER200
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter2.0472 in
-
Bore Diameter1 in
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Lithium complex NLGI #2 grease with an EP additive
- Through groove in outer diameter
- ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVER-216
-
UNSPSC31171537
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
