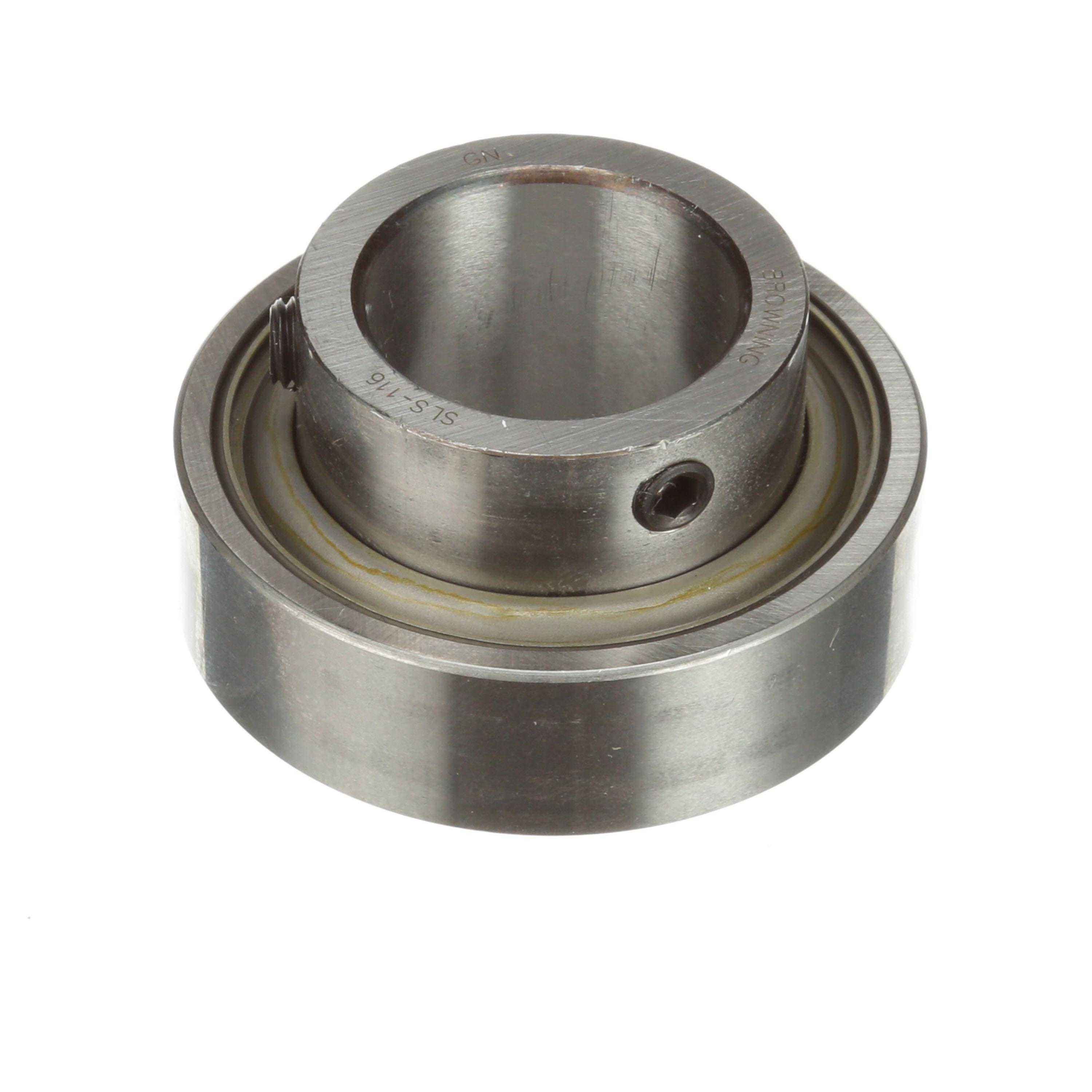

Browning® 767201 SLS 100 Light Duty Straight Bore Ball Bearing Insert, 1 in Dia Bore, 2.042 in OD, 1 Rows, 1-7/64 in W, 2801 lb Dynamic/1651 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662460343952
-
Manufacturer Part Number767201
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3500 rpm
-
Closure TypeDouble Seal
-
TypeLight Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width1-7/64 in
-
SeriesSLS 100
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter2.042 in
-
Bore Diameter1 in
- Cylindrical O.D. narrow inner ring bearing insert with no lubrication
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
- Cylindrical outer diameter
- Non-relubricatable
- Without Snap Ring
- Cylindrical O.D. narrow inner ring bearing insert with no lubrication_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
-
Alternative Part NumberSLS-116
-
UNSPSC31171537
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
