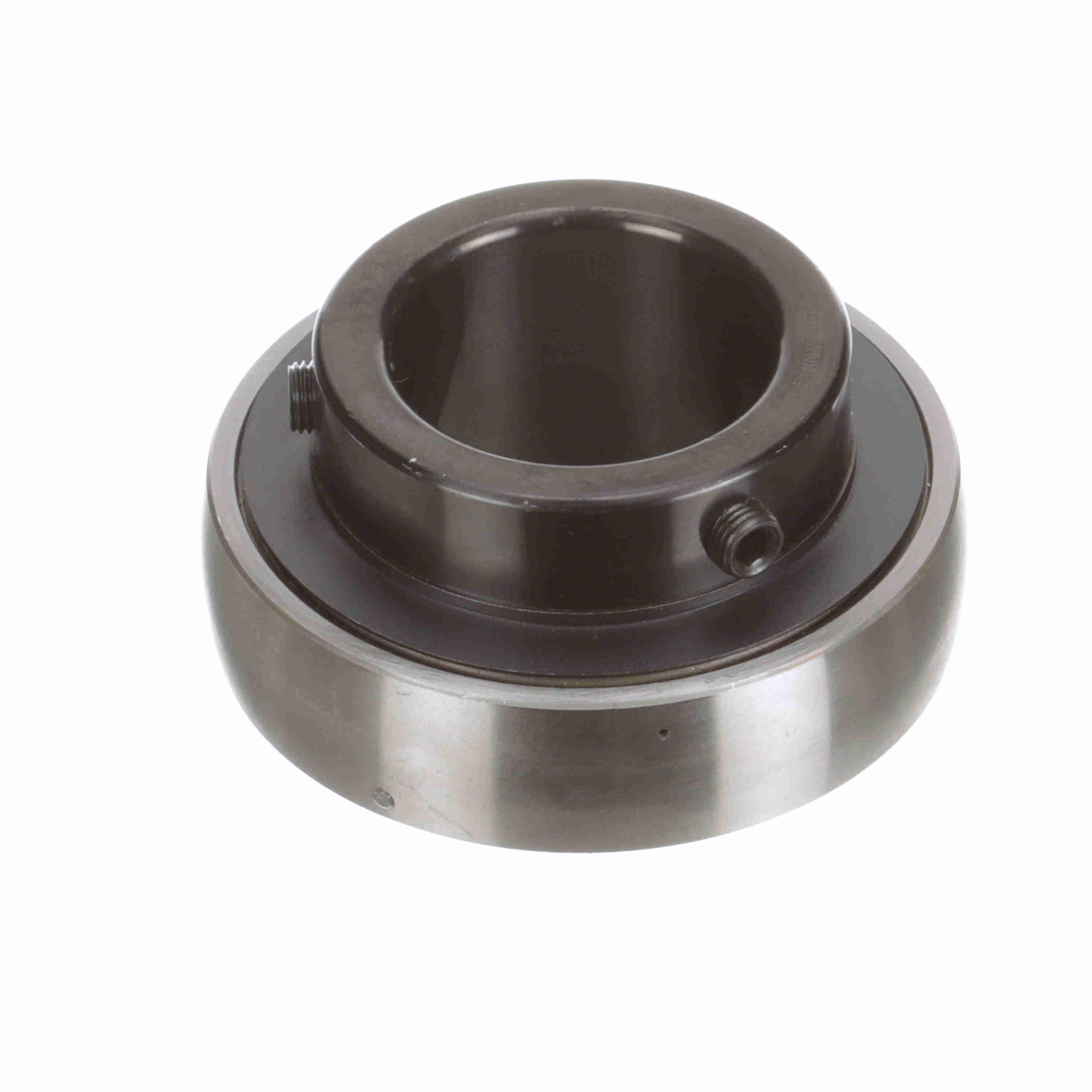

Browning® 767505 VS Series Medium Duty Straight Bore Ball Bearing Insert With Seal Flinger, 1.938 in Dia Bore, 3.937 in OD, 2.188 in W, 7889 lb Dynamic/5216 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289526604
-
Manufacturer Part Number767505
-
CountryUSA
-
Load Capacity7889 lb Dynamic/5216 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed2500 rpm
-
Closure TypeDouble Seal
-
TypeMedium Duty Straight Bore
-
Width2.188 in
-
SeriesVS Series
-
Bearing MaterialSteel
-
Outside Diameter3.937 in
-
Bore Diameter1.938 in
- Single setscrew locking
- Single lip contact seal
- Zone hardened inner race
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
-
Alternative Part NumberVS-331
-
UNSPSC31171504
-
Warranty1 Year
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
-
Warranty Information
