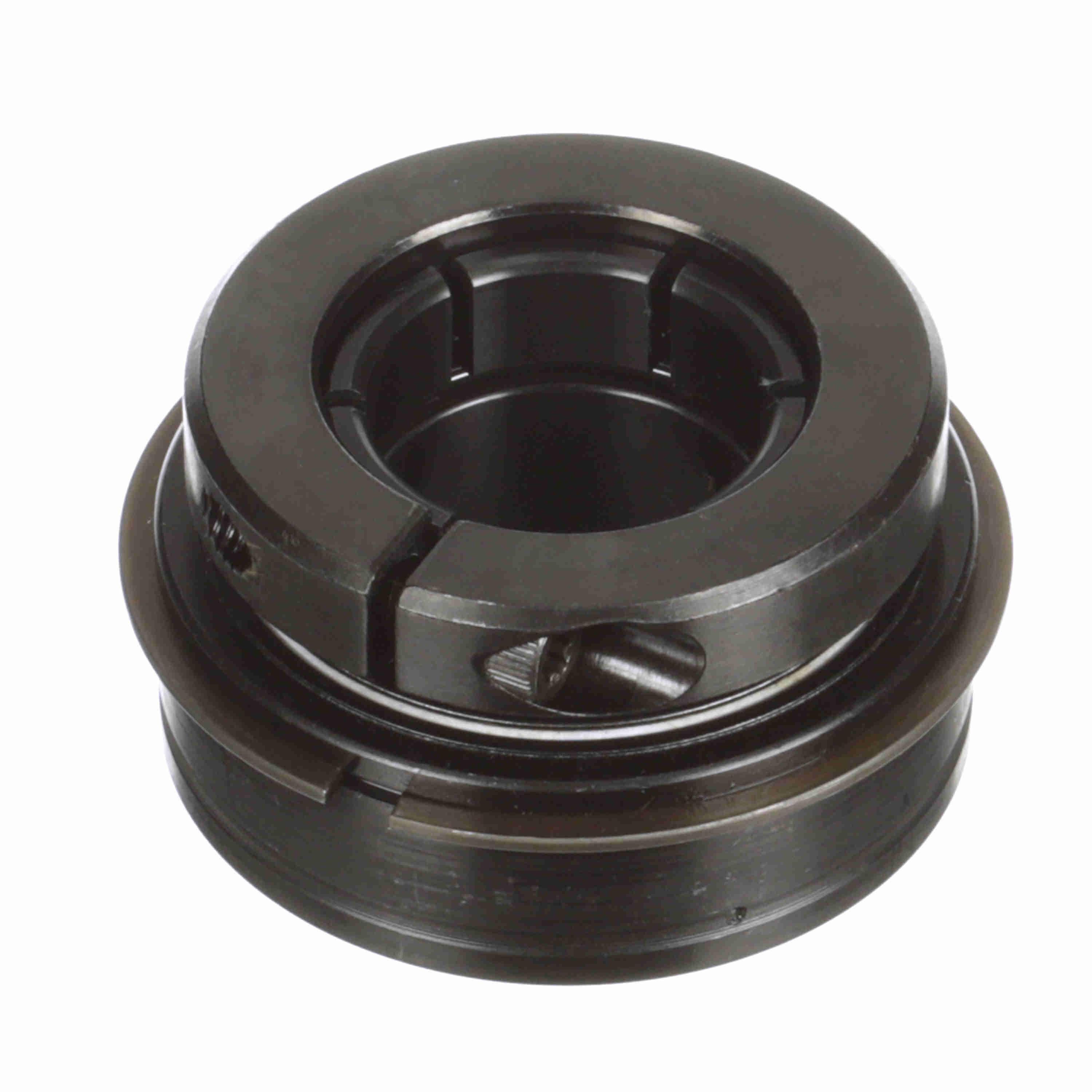

Sealmaster® 705577 ER-T Non-Expansion Standard Duty Straight Bore Ball Bearing Insert With Snap Ring, 1-3/8 in Dia Bore, 2.8346 in OD, 1 Rows, 1-3/4 in W, 5782 lb Dynamic/3493 lb Static Load
Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461031230
-
Manufacturer Part Number705577
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed6500 rpm
-
Closure TypeDouble Seal
-
TypeNon-Expansion Standard Duty Straight Bore
-
Seal MaterialFelt
-
Width1-3/4 in
-
SeriesER-T
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter2.8346 in
-
Bore Diameter1-3/8 in
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Lithium complex NLGI #2 grease with an EP additive
- ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Skwezloc concentric locking for near perfect concentricity_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
-
Alternative Part NumberER-22T
-
UNSPSC31171537
-
Package DescriptionEACH
-
