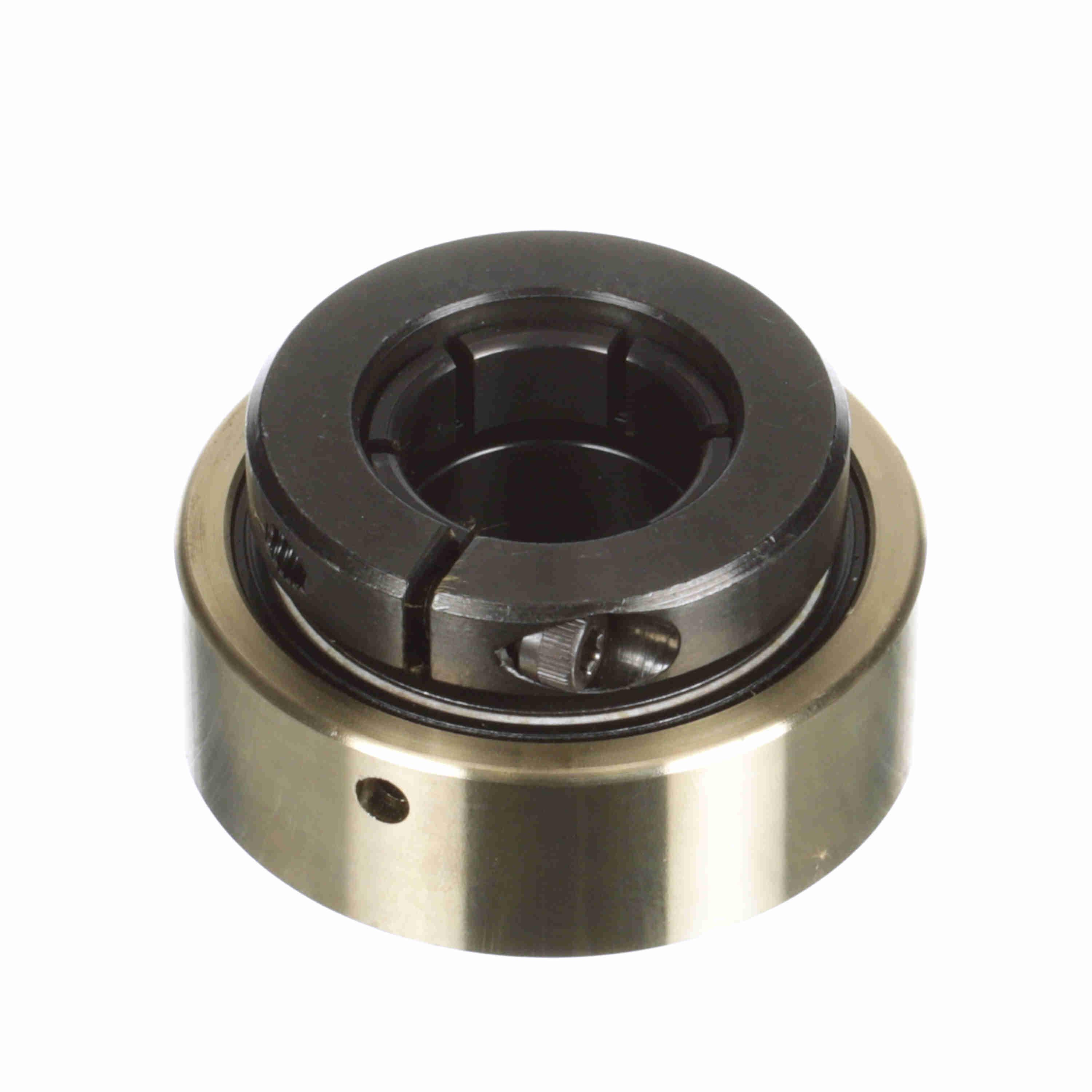

Sealmaster® 705590 Expansion Standard Duty Straight Bore Ball Bearing Insert With Seal Flinger, 1-1/4 in Dia Bore, 3.14 in OD, 1-3/4 in W, 5782 lb Dynamic/3493 lb Static Load
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461031360
-
Manufacturer Part Number705590
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed7600 rpm
-
TypeExpansion Standard Duty Straight Bore
-
Seal MaterialFelt
-
Width1-3/4 in
-
SeriesAR-T
-
Bearing MaterialSteel
-
Outside Diameter3.14 in
-
Bore Diameter1-1/4 in
- Skwezloc concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Skwezloc® concentric collar clamp design that results in near perfect concentricity of the shaft to bearing bore and maintains near perfect ball roundness reducing fretting corrosion
- Zone hardened inner race
- Lithium complex NLGI #2 grease with an EP additive
- Bearing insert installed in brass expansion ring_x005f Skwezloc concentric locking for near perfect concentricity_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
-
Alternative Part NumberAR-2-14T
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Catalog
-
Instruction/Installation Manual
