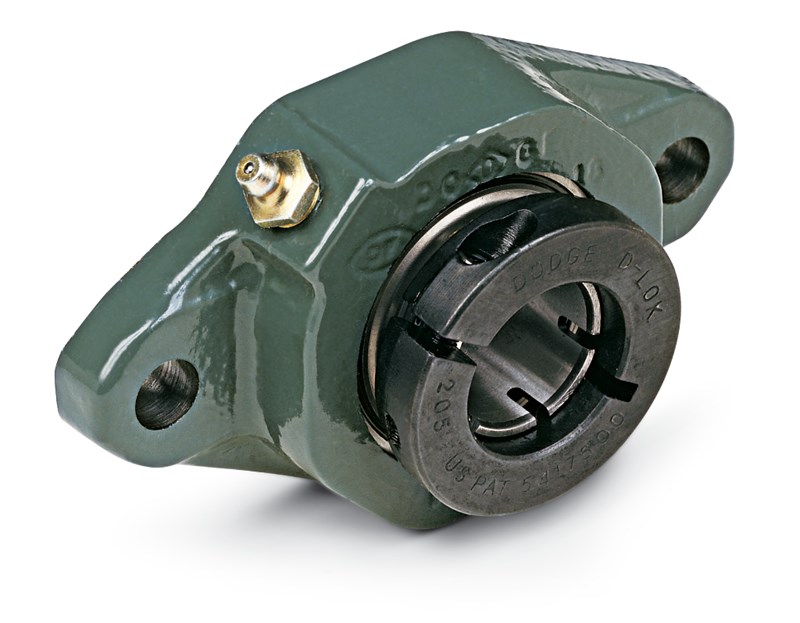

F2B-DL-012 Dodge® 128757 204 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 3/4 in Dia Bore, 3.53 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.41 in OAL/Dia
F2B-DL-012 Dodge® 128757 204 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 3/4 in Dia Bore, 3.53 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.41 in OAL/Dia
-
BrandDodge®
-
UPC782475889495
-
Manufacturer Part Number128757
-
CountryUSA
-
Load Capacity2899 lb Dynamic/1482 lb Static
-
Locking DeviceD-LOK® Concentric Clamp Collar
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed7500 rpm
-
TypeNormal Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series204
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3.53 in
-
Bore Diameter3/4 in
-
Overall Depth1.39 in
-
Overall Height2.38 in
-
Overall Length/Diameter4.41 in
- Precision-hardened and honed inner and outer rings
- New rugged housing design
- Normal duty wide inner ring
- Dual guard positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- Wide inner ring design
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939442 |
| Motion Industries | 00563952 |
-
Alternative Part NumberF2B-DL-012
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Full Engineering Drawing
-
Owners/User Manual
-
Specification Sheet
-
Warranty Information
-
Catalog
