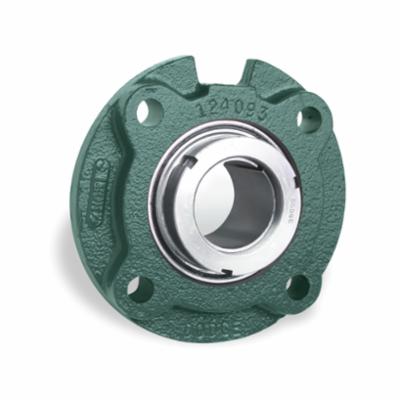

FC-DLM-200 Dodge® 128862 211 Medium Duty Non-Expansion Single Lip Flanged Cartridge Ball Bearing Unit, 2 in Dia Bore, 5.38 in L Bolt Center-to-Center, 5.38 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 6.38 in OAL/Dia
FC-DLM-200 Dodge® 128862 211 Medium Duty Non-Expansion Single Lip Flanged Cartridge Ball Bearing Unit, 2 in Dia Bore, 5.38 in L Bolt Center-to-Center, 5.38 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 6.38 in OAL/Dia
-
BrandDodge®
-
UPC782475892068
-
Manufacturer Part Number128862
-
CountryUSA
-
Load Capacity9755 lb Dynamic/6588 lb Static
-
Locking DeviceD-LOK® Concentric Clamp Collar
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base/Piloted
-
Maximum Speed3500 rpm
-
TypeMedium Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series211
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.38 in
-
Bolt Circle Diameter5.38 in
-
Bore Diameter2 in
-
Overall Depth2.37 in
-
Overall Length/Diameter6.38 in
- Precision-hardened and honed inner and outer rings
- New rugged housing design
- Dual guard positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- Wide inner ring design
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939527 |
| Motion Industries | 00565695 |
-
Alternative Part NumberFC-DLM-200
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Specification Sheet
-
Full Engineering Drawing
-
Warranty Information
