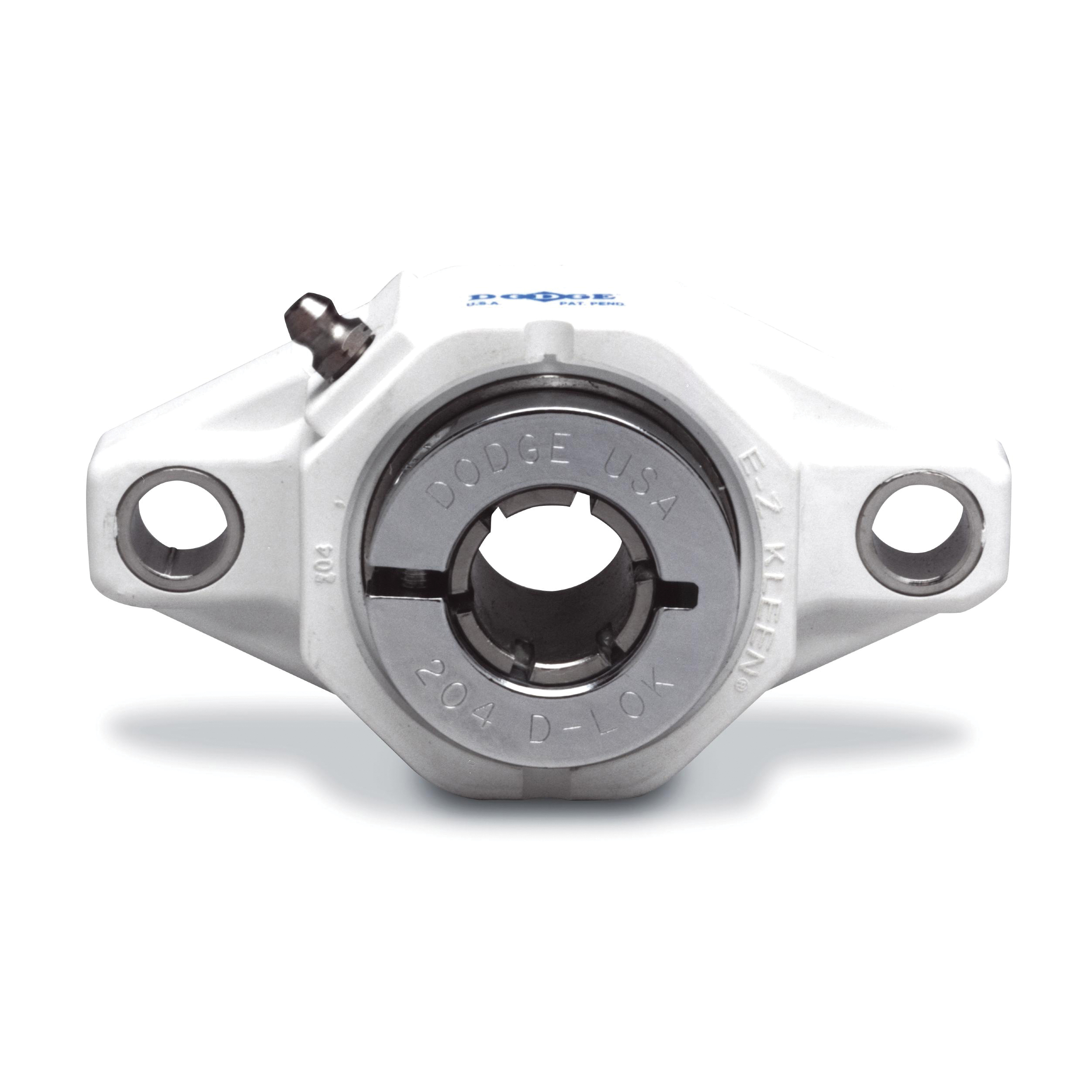

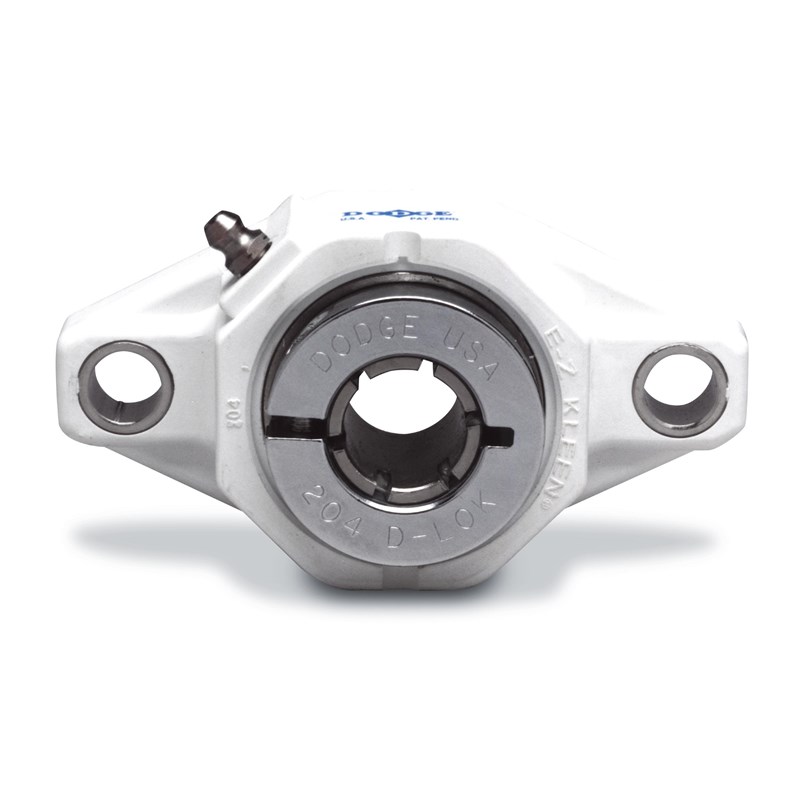

Dodge® E-Z-Kleen® 127603 205 Normal Duty Non-Expansion Ball Bearing Unit, 1 in Dia Bore, 3.9 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.92 in OAL/Dia
Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC set screw, D-LOK® concentric and Grip-Tight® adapter.
-
BrandDodge®
-
UPC782475985517
-
Manufacturer Part Number127603
-
CountryUSA
-
Load Capacity3146 lb Dynamic/1769 lb Static
-
Locking DeviceD-LOK® Concentric Clamp Collar
-
Temperature Rating-20 to 225 deg F
-
FinishUncoated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed6000 rpm
-
TypeNormal Duty Non-Expansion
-
Series205
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3.9 in
-
Bore Diameter1 in
-
Overall Depth1.6 in
-
Overall Height2.71 in
-
Overall Length/Diameter4.92 in
- Housings feature a solid base, with no cavities or fillings to trap contaminants
- An active antimicrobial agent in the polymer housing prevents fungal and bacterial growth
- Mechanically retained QuadGuard® sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element
- H1 registered food grade lubricant
- Plug included in each E-Z-Kleen® bearing for customer to replace grease fitting if required
- Wide inner ring design
- Polymer housing
- Corrosion resistant insert
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939652 |
| Motion Industries | 01464298 |
-
Alternative Part NumberF2B-DLEZ-100-PCR
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
-
Warranty Information
