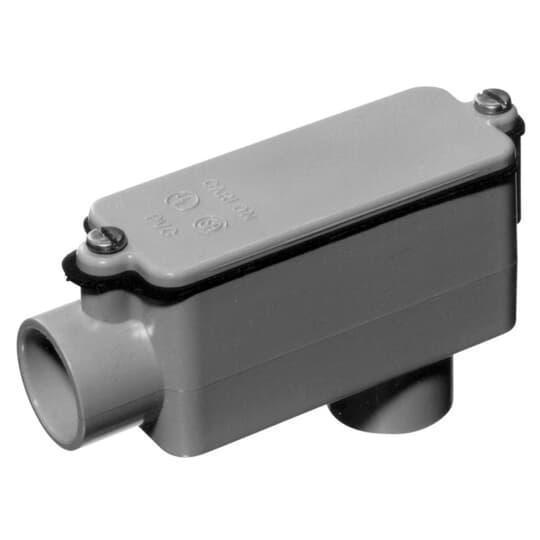

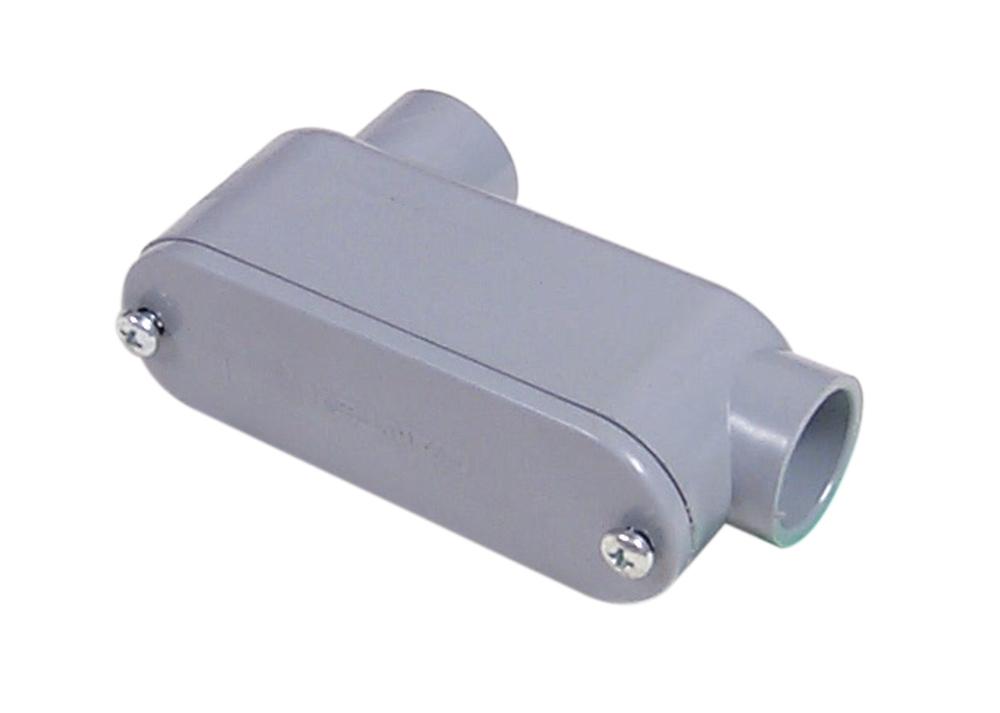

Southwire - Topaz 1146 Type LB Conduit Body With Junction Box, Zinc Plated Steel Screw, 2 in Hub, PVC
Available in sizes from 1/2” to 4”,Topaz's Schedule 40 PVC LB Type Conduit Bodies permit 90° back turns in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs. Lightweight, noncorrosive and nonconductive PVC construction enables easy installation in small areas. Removable cover with zinc plated screws; UL approved and always ready for fast delivery.
-
BrandSouthwire - Topaz
-
UPC751338233782
-
Manufacturer Part Number1146
-
CountryUSA
-
Capacity63 cu-in
-
MaterialPVC
-
ColorGray
-
TypeType LB
-
Hub Size2 in
-
Number of Hubs2
-
Dimensions9-13/16 in L x 3-1/8 in W x 3-3/8 in H
-
Wall ThicknessSCH 40
- Lightweight, enables easy installation in small areas
- Rectangular shaped conduit body with are movable cover
- One entrance hub at the opposite end in the back (floor)
-
Alternative Part Number9370176
-
UNSPSC39121311
-
IDEA Index ID9370176
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B|UL File No. E170258|cULus Listed|CSA Certified|Federal Specification No. A-A-50563|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Specification Sheet
