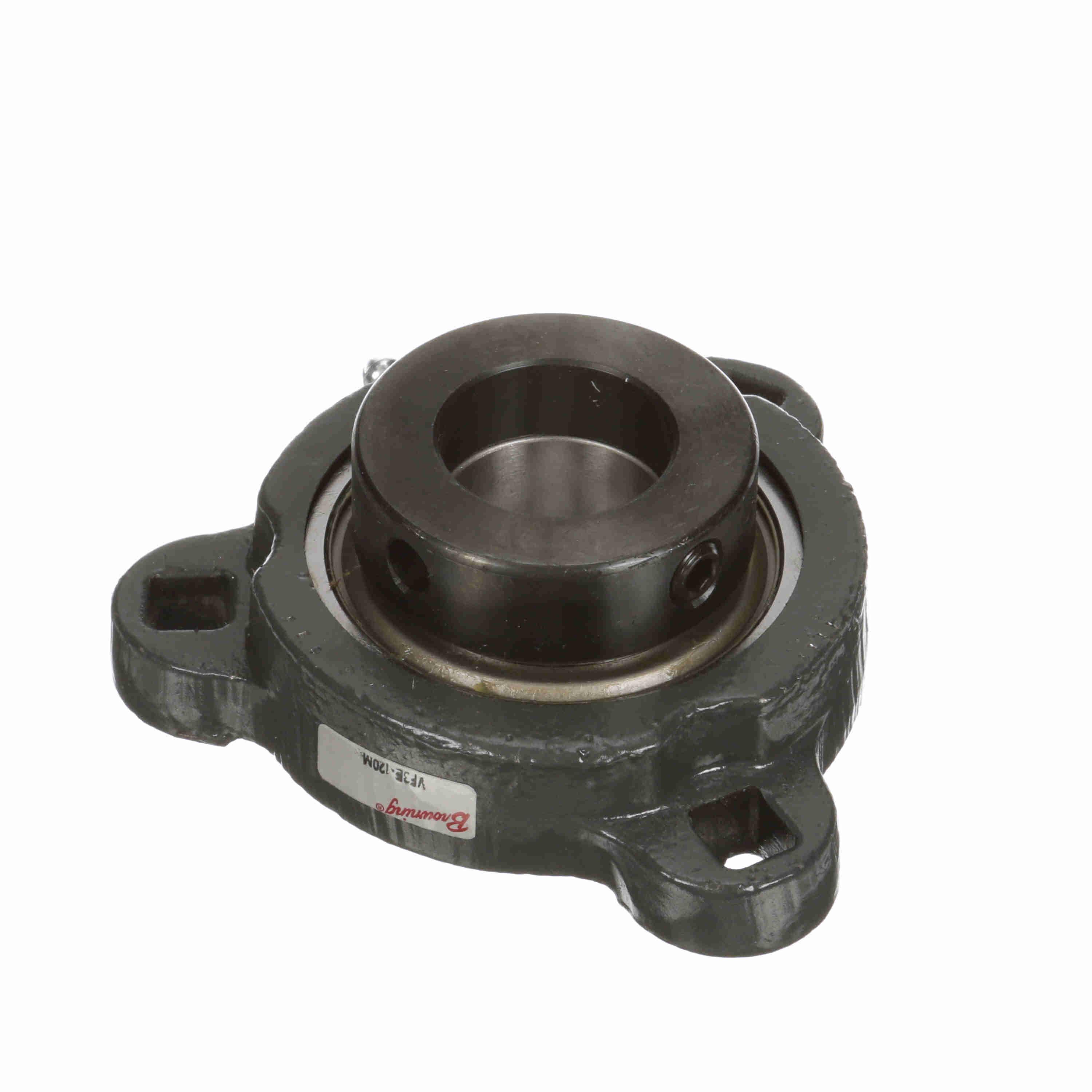

Browning® 767792 VF3E 100 Non-Expansion Intermediate Duty Round/Straight Bore Ball Bearing Unit, 1-1/4 in Dia Bore, 3-15/16 in Dia Bolt Circle, 3-Bolt Flange Mount, 4-13/16 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289075089
-
Manufacturer Part Number767792
-
CountryUSA
-
Load Capacity4381 lb Dynamic/2567 lb Static
-
Locking DeviceEccentric
-
Temperature Rating200 deg F
-
FinishGray Painted
-
Flange Mounting Type3-Bolt
-
Maximum Speed3000 rpm
-
TypeNon-Expansion Intermediate Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF3E 100
-
Bearing MaterialSteel
-
Bolt Circle Diameter3-15/16 in
-
Bore Diameter1-1/4 in
-
Overall Depth1-11/16 in
-
Overall Length/Diameter4-13/16 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Plastic retainer
- 52100 black oxide coated insert
- Without seal flinger
-
Alternative Part NumberVF3E-120M
-
UNSPSC31171501
-
Warranty1 Year
-
Package DescriptionEACH
-
